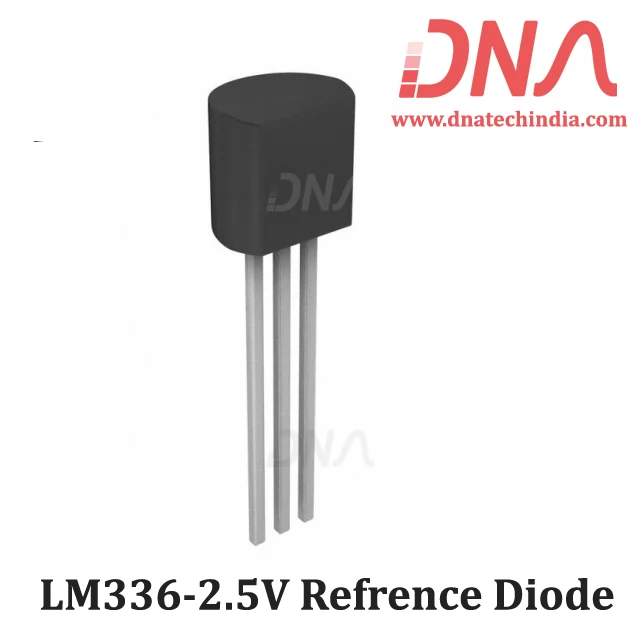

LM336-2.5V Reference Diode

The LM336-2.5 integrated circuits is precision 2.5V shunt regulator diodes.

These monolithic IC voltage references operate as a low temperature-coefficient 2.5V zener with 0.2 Ω dynamic impedance. A third terminal on the LM136-2.5 allows the reference voltage and temperature coefficient to be trimmed easily. The LM136-2.5 series is useful as a precision 2.5V low voltage reference for digital voltmeters, power supplies or op amp circuitry.

The 2.5V make it convenient to obtain a stable reference from 5V logic supplies. Further, since the LM136-2.5 operates as a shunt regulator, it can be used as either a positive or negative voltage reference. The LM136-2.5 is rated for operation over −55˚C to +125˚C while the LM236-2.5 is rated over a −25˚C to +85˚C temperature range. The LM336-2.5 reference Diode is rated for operation over a 0˚C to +70˚C temperature range.

We have Various sizes of Diode. Check out our complete collection of Diode.

Features of LM336-2.5V Referance Diode

• Low temperature coefficient

• Wide operating current of 400 µA to 10 mA

• 0.2 Ω dynamic impedance

• ±1% initial tolerance available

• Guaranteed temperature stability

• Easily trimmed for minimum temperature drift

• Fast turn-on
