Product Images are shown for illustrative purposes only and may differ from actual product.

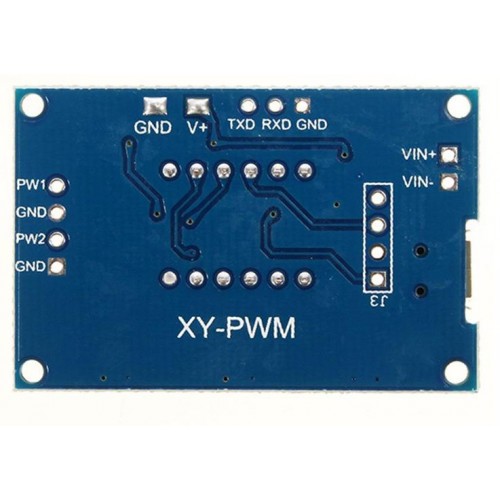

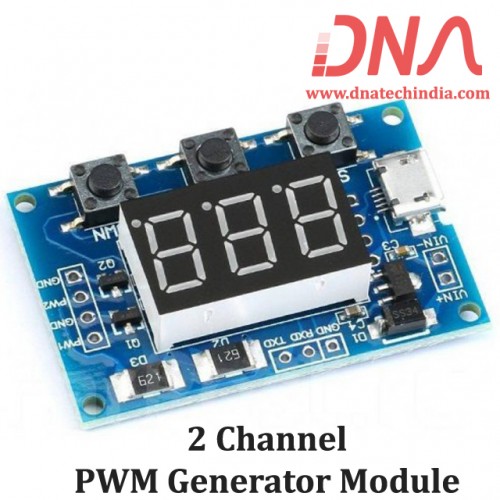

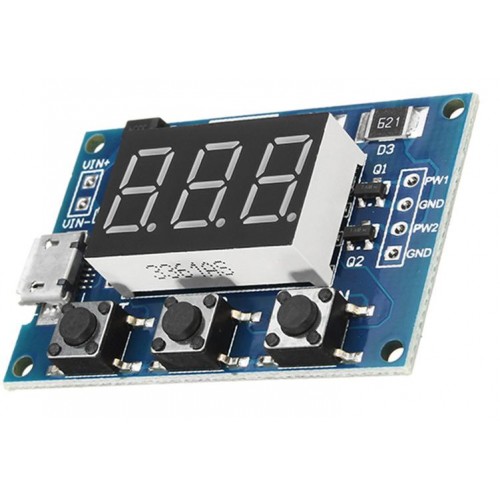

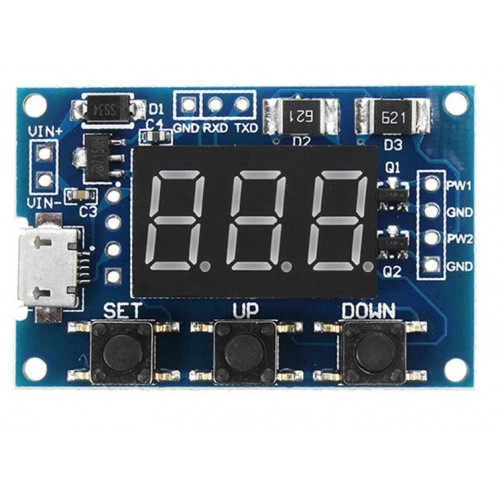

2 channel PWM Generator Module

  • Stock: 75
  • SKU: 1805 | DAA936
  • Rs. 88.50 (inc GST)
    Rs.75.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

2 channel PWM Generator Module

Two Channel PWM Pulse Adjustable Frequency Square Wave Digital Display Signal Generator Module Stepper Motor Controller

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 2 channel PWM Generator Module

  • Operating voltage : 5-30 volts , micro USB 5.0 support v power supply
  • Frequency range : 1 hz ~ 150 kHz
  • Accuracy frequency : 2%
  • Load Capacity signal : output current is within 8 - 30mA
  • Output range : default 5 v V-pp (can be changed by external power supply)
  • Ambient temperature : -30 Celsius Celsius ~ 70

Characteristics Of 2 channel PWM Generator Module

  • Brand new and high quality.
  • Suitable for serial communication.
  • Wide frequency range, high precision.
  • Two independent PWM generators can set the frequency and duty cycle.

Applications Of 2 channel PWM Generator Module

  • As square wave generator to generate square wave for development experience
  • Used to conduct maceration motor square wave driver
  • Generate adjustable pulse for MCU using
  • Generate adjustable pulse to control the relative circuit (PWM adjust the speed of light etc)

Serial Port Control Of 2 channel PWM Generator Module

  • Communication Standard : 9600 bps
  • Data bits : 8
  • Stop Bit : 1
  • Check Bit : None
  • Flow Control : none

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
