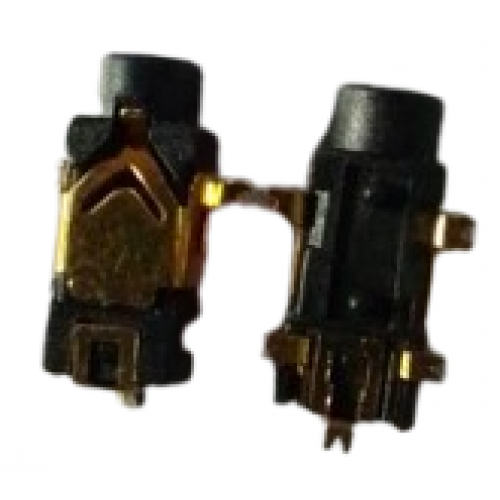

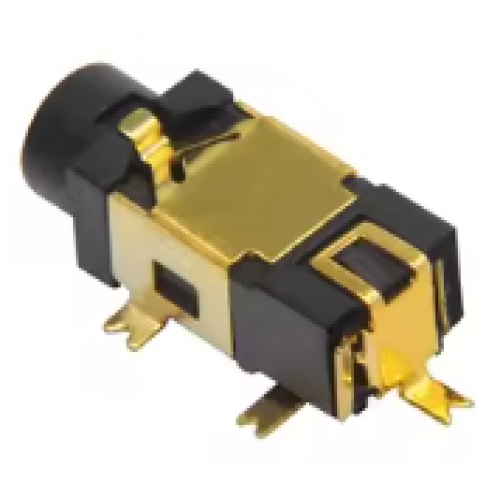

2.5mm Audio Connector Female 5 Pin SMT SMD Headphone Jack

2.5mm Audio Connector PJ209 with 5 pins for stereo audio and ground connections, suitable for SMT applications.

The 2.5mm Audio Connector Female 5 Pin SMT SMD Headphone Jack PJ209 serves as a dependable audio interface for various compact devices. This connector features a 2.5mm stereo socket, designed to deliver clear audio signals. Its 5-pin configuration supports stereo audio and ground connections, making it ideal for portable audio devices and multimedia equipment.

Built for surface mount technology, this 2.5mm Audio Connector ensures seamless integration into modern PCB layouts, enhancing the usability of consumer electronics. It is perfect for DIY audio projects, allowing hobbyists and professionals to create high-quality audio solutions.

With a durability of over 5000 mating cycles, the 2.5mm Audio Connector guarantees long-lasting performance and reliability. Whether you are working on headphones, earphones, or multimedia players, this component meets the demands of today’s electronic designs.

Explore the wide range of Connectors and Cables. Our selection includes the reliable DNA brand, ensuring quality and performance. Check other "Connectors and Cables" that we have in stock.

If you cannot find specific electronic components, reach out to us. We can import parts and support retail as well as bulk orders. Check our range of related items like Development Modules, Inductors, Capacitors, Resistors, MOSFETs, and Sensor Modules. Contact Us.

Features of 2.5mm Audio Connector Female 5 Pin SMT SMD Headphone Jack

• Compact 2.5mm stereo headphone jack
• 5 pin design for stereo audio and ground connections
• Surface mount (SMT/SMD) type for modern PCB layouts
• Durable and reliable contact performance
• Ideal for portable and compact electronic devices

Specification of 2.5mm Audio Connector Female 5 Pin SMT SMD Headphone Jack

• Connector type: 2.5mm female stereo jack
• Pin count: 5 pins
• Mounting type: SMT / SMD
• Contact resistance: ≤30 mΩ
• Insulation resistance: ≥100 MΩ
• Durability: ≥5000 mating cycles

Applications of 2.5mm Audio Connector Female 5 Pin SMT SMD Headphone Jack

• Portable audio devices
• Headphones and earphones
• Multimedia and MP3 players
• DIY audio projects and kits
• Consumer electronic products

Related Links for 2.5mm Audio Connector Female 5 Pin SMT SMD Headphone Jack

• Other Products from Connectors and Cables Category

Package Includes

• 1 X 2.5mm Audio Connector Female 5 Pin SMT SMD Headphone Jack
