• 20 Pin Male Straight FRC Connector

Product Images are shown for illustrative purposes only and may differ from actual product.

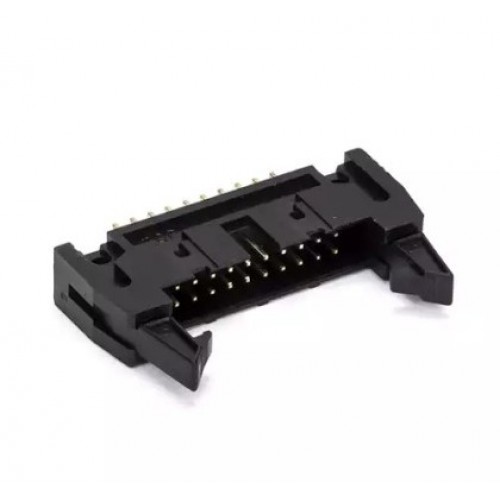

20 Pin Male Straight FRC Connector

  • Stock: 5
  • SKU: 9215 | DAD273
  • Rs. 11.33 (inc GST)
    Rs.9.60 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

20 Pin Male Straight FRC Connector

20 Pin Male Straight FRC Connector

The 20 Pin Male Straight FRC Connector is a dual-row, through-hole IDC connector designed for flat ribbon cable interfacing. With a standard 2.54mm pitch and 2x10 pin layout, it provides reliable signal transmission between PCBs and peripherals. The vertical (straight) orientation is ideal for compact, vertical stacking in embedded or industrial systems. It features a thermoplastic housing and tin-plated copper alloy contacts for durability and corrosion resistance. Polarization slots ensure proper cable alignment. Widely used in microcontroller boards, control panels, and development kits.

DNA solutions, Nashik has various types of Connector's. Check out our complete collection of Connector's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 20 Pin Male Straight FRC Connector

  • Number of Pins: 20
  • Gender: Male
  • Mounting Style: Through-hole
  • Orientation: Straight type
  • Cable Compatibility: 1.27mm pitch flat ribbon cables
  • Connector Type: IDC
  • Material: Thermoplastic body with tin/lead-plated copper alloy contacts
  • Pitch: 2.54mm
  • Durability: Typically rated for 200 mating cycles
  • Locking Mechanism: Friction lock

Specifications of 20 Pin Male Straight FRC Connector

  • Number of Pins: 20
  • Gender: Male
  • Mounting Type: Through-Hole
  • Orientation: Straight
  • Contact Pitch: 2.54 mm
  • Cable Compatibility: Flat Ribbon Cable, 1.27 mm pitch
  • Housing Material: Thermoplastic
  • Current Rating: Up to 1 A per contact
  • Voltage Rating: Up to 250 V AC/DC

Applications of 20 Pin Male Straight FRC Connector

  • Microcontroller or microprocessor boards
  • Industrial automation systems
  • Embedded development kits
  • Internal board-to-board cable interconnections
  • Data and signal transmission in electronics

    Package Includes

          1 x 20 Pin Male Straight FRC Connector

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
