Product Images are shown for illustrative purposes only and may differ from actual product.

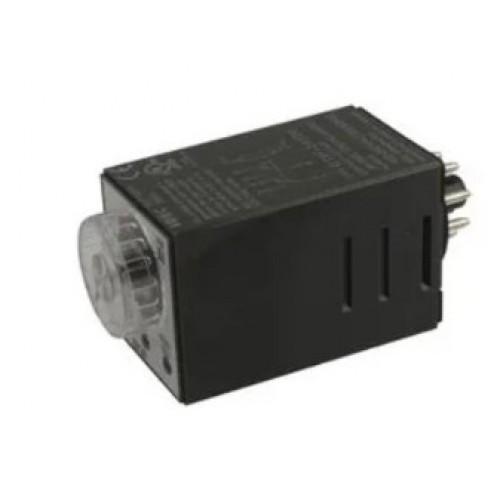

GT3F-2AF20 TIMER-COUNTER DISPLAY PANEL
- Stock: Out Of Stock
- SKU: 9450 | DAI327
-
Rs. 16,411.63 (inc GST)
Rs.13,908.16 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
GT3F-2AF20 TIMER-COUNTER DISPLAY PANEL
GT3F-2AF20 TIMER-COUNTER DISPLAY PANEL
The IDEC GT3F-2AF20 is a high-precision timer-counter display panel designed for industrial automation and control applications. Featuring a true power off-delay function, it allows output timing to continue even after the power supply is disconnected-making it ideal for applications where a delay is needed post power-off without requiring external logic or switches. The unit supports a wide timing range from 0.1 seconds to 600 seconds easily adjustable via a front-mounted analog dial. Its dual Form C (DPDT) relay output contacts handle up to 3A at 250VAC/30VDC, ensuring compatibility with a wide range of devices and loads. This timer panel is ideal for use in conveyor systems, HVAC controls, lighting systems, and any environment that requires precise, reliable delay-on-power-off functionality.
DNA solutions, Nashik has various types of Panel's. Check out our complete collection of Panel's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of GT3F-2AF20 TIMER-COUNTER DISPLAY PANEL
- True Power Off-Delay Function: Maintains output for a preset time after power is removed, eliminating the need for external control switches
- Time Range: Adjustable from 0.1 seconds to 600 seconds via an analog dial.
- Output Contacts: Dual Form C (DPDT) relay contacts rated at 3A @ 250VAC/30VDC.
- Operating Voltage: 100–240VAC, 50/60Hz.
- Mounting Style: 8-pin octal plug-in for socket or flush panel mounting.
- Indicators: LEDs for power and timing status.
Specifications of GT3F-2AF20 TIMER-COUNTER DISPLAY PANEL
- Function: Off-Delay
- Time Range: 0.1s to 600s
- Contact Configuration: DPDT
- Contact Rating: 3A @ 250VAC / 30VDC
- Operating Voltage: 100–240VAC
- Mounting Type: 8-pin octal plug-in
- Timing Adjustment: Analog dial
Applications of GT3F-2AF20 TIMER-COUNTER DISPLAY PANEL
- Industrial Automation
- Conveyor Systems
- HVAC Systems
- Lighting Control
Package Includes
1 x GT3F-2AF20 TIMER-COUNTER DISPLAY PANEL
