25TTS12 High Voltage Thyristor SCR (Doingter)

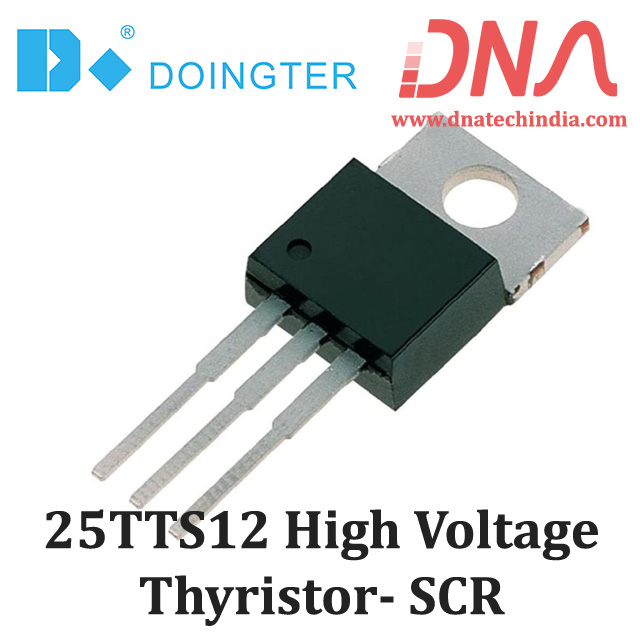

Doingter 25TTS12 High Voltage Thyristor SCR

25TTS12 Thyristor SCR, 1200V, 25A, designed for phase control applications.

The Doingter 25TTS12 High Voltage Thyristor SCR is engineered for reliable medium power switching and phase control. With a maximum junction temperature of 125 °C, it operates efficiently in various applications such as motor control, UPS systems, and welding. The SCR provides robust performance with a voltage rating of 1200 volts and can handle a current of up to 25 amperes.

This 25TTS12 High Voltage Thyristor SCR utilizes advanced glass passivation technology, ensuring durability and consistent operation. Its design supports input rectification and acts as a crowbar for soft start applications, making it ideal for battery charging and AC switching. The SCR's high current capability of 320 amperes makes it suitable for demanding environments.

Explore the Doingter 25TTS12 High Voltage Thyristor SCR for your electronic projects. It is an essential component for those looking to enhance their systems with reliable power control solutions. Get yours today and experience the efficiency in your applications.

At DNA Solutions, we offer a wide range of IGBT, Thyristor & Diode Modules from top manufacturers like Doingter. Our collection includes various types of SCRs and Triacs. Discover the quality and reliability of our products. Check other IGBT, Thyristor & Diode Modules that we have in stock.

If you need specific electronic components, reach out to us at DNA. We can help you find parts like Diodes, Humidity & Temperature Sensors, or even import items that are not available. We support both retail and bulk orders. Contact Us.

Features of Doingter 25TTS12 High Voltage Thyristor SCR

• Designed for 125°C Junction Temperature
• Maximum Voltage: 1200 Volts
• Maximum Current: 25 Amperes
• High Surge Current Rating: 320 Amperes

Specification of Doingter 25TTS12 High Voltage Thyristor SCR

• It(av): 16 Amperes
• IRMS: 25 Amperes
• Vrrm/Vdrm: 1200 Volts
• Itsm: 320 Amperes

Applications of Doingter 25TTS12 High Voltage Thyristor SCR

• Motor Control
• UPS Systems
• Welding Equipment
• Battery Charging
• AC Switching

Package Includes

• 1 X Doingter 25TTS12 High Voltage Thyristor SCR
