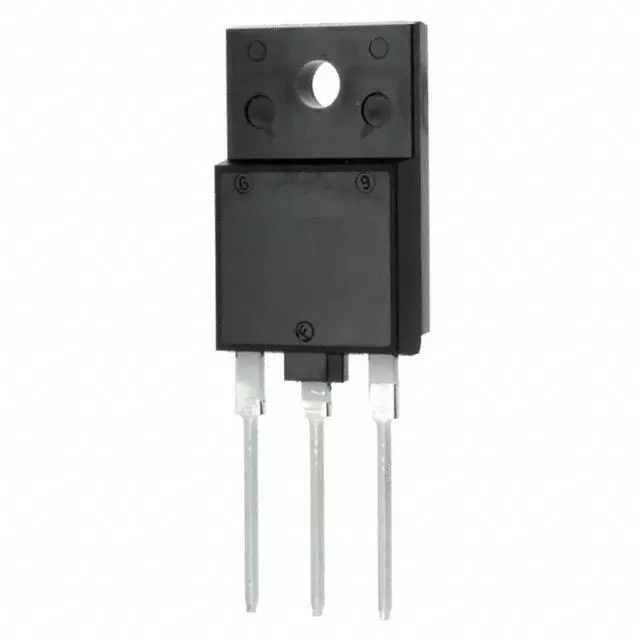

2SC4424 High Speed Switching NPN Power Transistor

2SC4424 High Speed Switching NPN Power Transistor

2SC4424 Transistor for high-speed switching, 800V collector-base voltage, low saturation voltage.

The 2SC4424 High Speed Switching NPN Power Transistor is ideal for high-voltage circuits, particularly in power supplies and motor control systems. With a collector-base voltage of 800V and fast switching capabilities, this transistor ensures reliable performance in demanding applications. It operates efficiently in power amplifiers, making it a preferred choice for engineers in India.

This transistor features a low collector-emitter saturation voltage of 1.5V max at 4A, ensuring minimal energy loss during operation. The 2SC4424 provides excellent DC current gain, ranging from 10 to 40 at 4A, enhancing its efficiency in various applications. Its high reliability makes it suitable for both commercial and industrial electronics.

Explore the benefits of the 2SC4424 High Speed Switching NPN Power Transistor for your next project. Whether you need fast switching, power conversion, or general-purpose amplification, this component delivers exceptional performance. Its versatility makes it a valuable addition to any electronic toolkit in India.

At DNA, we offer a wide range of quality Diodes & Transistors from top manufacturers. Explore the 2SC4424 High Speed Switching NPN Power Transistor and enhance your projects. Check other "Diodes & Transistors" that we have in stock.

If you are searching for specific electronic components, reach out to us at DNA. We can help you find parts you need, including Diodes, Resistors, Power Supplies, and more. We also support bulk orders and can import items if they are not available. Contact Us.

Features of 2SC4424 High Speed Switching NPN Power Transistor

• High voltage handling
• Low collector-emitter saturation voltage
• Fast switching speed
• High reliability
• Suitable for power amplifiers and inverters

Specification of 2SC4424 High Speed Switching NPN Power Transistor

• Collector-Base Voltage (V_CBO): 800V
• Collector-Emitter Voltage (V_CEO): 400V
• Emitter-Base Voltage (V_EBO): 7V
• Collector-Emitter Saturation Voltage (V_CE(sat)): 1.5V max at I_C = 4A, I_B = 0.8A
• Base-Emitter Saturation Voltage (V_BE(sat)): 1.5V max at I_C = 4A, I_B = 0.8A
• DC Current Gain (h_FE): 10-40 at I_C = 4A

Applications of 2SC4424 High Speed Switching NPN Power Transistor

• Power supplies
• Inverters
• Motor control systems
• Amplifiers
• Electronic switching circuits

Package Includes

• 1 X 2SC4424 High Speed Switching NPN Power Transistor
