Product Images are shown for illustrative purposes only and may differ from actual product.

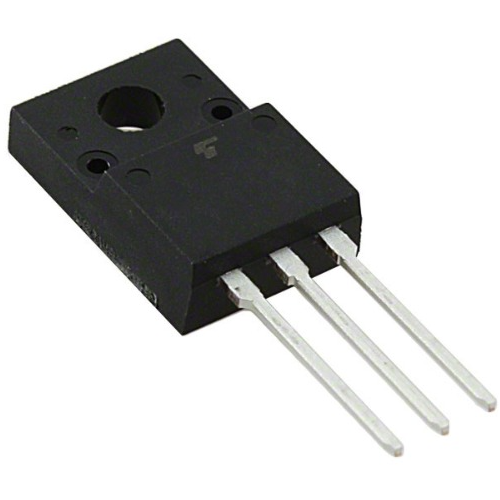

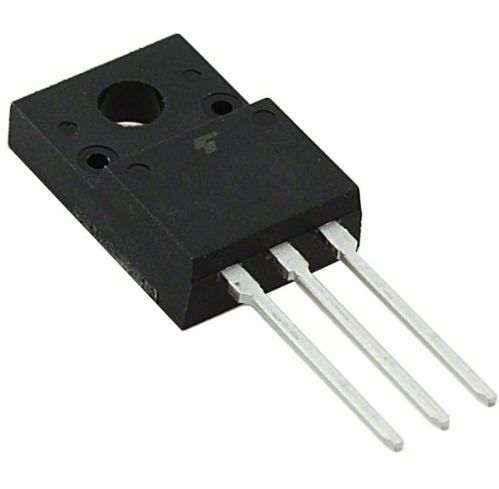

2SK3566 N-Channel Power MOSFET TO-220 Package
- Stock: 25 InStock
- SKU: 9995 | DAI985
-
Rs.
103.25 (inc GST)
Rs.87.50 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
2SK3566 N-Channel Power MOSFET TO-220 Package
2SK3566: High Voltage N-Channel MOSFET for Power Supply and Lighting Circuits
The 2SK3566 is a high-voltage N-Channel enhancement-mode power MOSFET designed for fast switching and efficient energy conversion. It offers a drain-source voltage rating of 900 V and a continuous drain current of 2.5 A, making it ideal for use in switch-mode power supplies, lighting ballasts, and inverter applications. With a low RDS(on) value of 6.4 Ω and fast switching performance, the 2SK3566 ensures minimal power loss and high reliability in compact power circuits. The device is housed in a TO-220 package, providing excellent heat dissipation.
DNA is a trusted supplier of MOSFETs and power transistors in India, offering retail and bulk purchase options. We stock popular Electronic components like BJTs, MOSFETs, and rectifier diodes, available for fast dispatch across India.
Can’t find the exact transistor or Electronic Component? Our team can help you source it, click here to contact us.
Features of 2SK3566 MOSFET
- N-Channel enhancement-mode power MOSFET
- High drain-source voltage of 900 V
- Continuous drain current of 2.5 A
- Low RDS(on) value of 6.4 Ω (typical)
- Fast switching capability for efficient power conversion
- TO-220 package for effective thermal management
- Ideal for lighting ballasts, SMPS, and inverter circuits
Specifications of 2SK3566 MOSFET
- Transistor Type: N-Channel MOSFET
- Drain-Source Voltage (VDSS): 900 V
- Continuous Drain Current (ID): 2.5 A
- Drain-Source On-Resistance (RDS(on)): 6.4 Ω (typical)
- Gate Threshold Voltage (VGS(th)): 2.5 – 4.0 V
- Total Power Dissipation (PD): 30 W
- Gate Charge (Qg): 15 nC (typical)
- Package: TO-220
Applications of 2SK3566 MOSFET
- Switch-mode power supplies (SMPS)
- Lighting ballast control
- Inverter and converter circuits
- Consumer and industrial power systems
- High-voltage, low-current switching
Related Links
Package Include
- 1 x 2SK3566 N-Channel Power MOSFET (TO-220)
