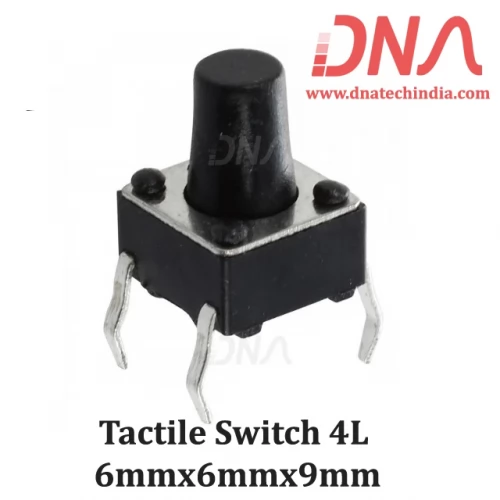

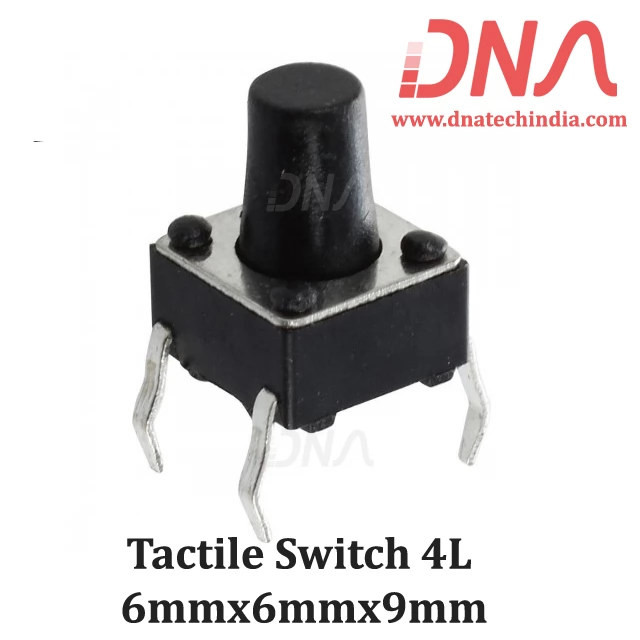

Tactile Switch 4L 6mmx6mmx9mm

  • Stock: 790
  • SKU: 2440 | DAC265
  • Rs. 5.07 (inc GST)
    Rs.4.30 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

4 Pins Tactile Switch

4 Pins Tactile Switch Panel PCB Mount Momentary TACT Switch Push Button

Tactile Push Button Switch is widely used as a standard input “buttons” on electronic projects. These work best when you mount it on PCB but can also be used on a solderless breadboard for temporary connections in prototypes. The pins are normally open (disconnected) and when the button is pressed they are momentarily closed and complete the circuit.

This tact switch also offers reliable dome contact technology and strong tactile feedback, with multiple operating forces to choose from. Applications include telecommunications, consumer electronics, audio/visual, medical devices, testing/instrumentation, and computer/peripherals.

We have Various sizes of Tactile Switch. Check out our complete collection of Tactile Switch.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

How to Used 4 Pins Tactile Switch

  • Feature momentary contact, 4 pins, black square push button, through hole mounting.
  • Used in the fields of electronic products, household appliances and more.
  • High precision mechanism design offers acute operation and long service life.
  • New high-quality, suitable for remote control, electronic toys, household appliances, computer products, walkie-talkie and other electronic products
  • These small switches make good contact, snap or click when pressed. The pin placement is perfect for PC boards and bread boards. On bread boards you will need to flatten the legs so they insert properly

Feature

  • Through-hole design.
  • High operating force (1.5N or 2.5N) suited to automotive equipment requirements
  • The long life of 300,000 cycles realized despite the high operating force
  • Middle stroke (1.05mm)
  • Used in the fields of electronic products, household appliances and more.
  • This light touch switch is waterproof, prevent oil, anti-pollution, anti-static interference.
  • High precision mechanism design offers acute operation and long service life.
  • Compact and light weight, easy to carry and dismantling.
  • Good electrical conductivity.

Specification

  • Brand Name : Aodesy
  • Connector Type : Through_hole
  • Material : Plastic , Metal
  • Mounting Type : PCB Mount
  • Switch Type : Push Button Switch
  • Color : Black, Silver Tone
  • Temperature : -30~+70Centigrade
  • Withstand Voltage : AC250V
  • Rated Load : DC12V 50mA
  • Contact Resistance : =0.03Ohm
  • Insulation Resistance : =100MOhm
  • Dimension : 6 x 6 x 9mm

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
