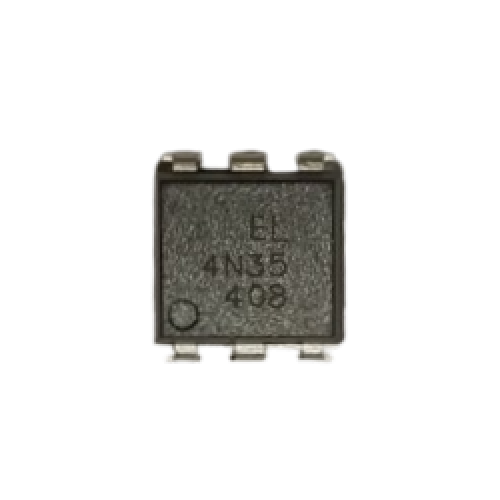

4N35 Optocoupler

4N35 Optocoupler

4N35 Optocoupler, provides high voltage isolation up to 3.55 kV, high-speed switching, and a high direct-current transfer ratio.

The 4N35 Optocoupler is designed for reliable signal transmission in electronic applications. This device features a diode optically coupled to a Silicon npn phototransistor. It offers high-speed switching with a typical rise and fall time of 7 µs, ensuring efficient performance in various circuits. With a high direct-current transfer ratio and an impressive isolation voltage rating of up to 3.55 kV, it guarantees safe operation in demanding conditions.

Ideal for applications such as remote terminal isolation, SCR and Triac triggers, and mechanical relays, the 4N35 Optocoupler stands out in the realm of OptoCouplers & OptoIsolators. Its robust construction allows it to handle peak voltages effectively, making it suitable for pulse transformers and other critical components in electronic design. Choose this optocoupler for enhanced safety and performance in your projects.

Explore the benefits of using the 4N35 Optocoupler for your electronic needs. With its high-voltage capabilities and fast switching speeds, it is a reliable choice for engineers and hobbyists alike. Upgrade your designs with this essential component today.

At DNA, we offer a wide range of products from top manufacturers in the OptoCouplers & OptoIsolators category. Explore the 4N35 Optocoupler and discover other innovative solutions tailored for your electronic projects. Check other "OptoCouplers & OptoIsolators" that we have in stock.

Are you searching for specific electronic components? At DNA, we cater to all your needs. If you can't find what you require, we can import it for you. We support retail and bulk orders. Explore related items like Microcontrollers, SMPS, Digital ICs, Sensors, and more. Contact Us.

Features of 4N35 Optocoupler

• High direct-current transfer ratio
• High-voltage isolation up to 3.55 kV
• High-speed switching with tr/tf = 7 µs

Specification of 4N35 Optocoupler

• Collector-base voltage=70 V
• Collector-emitter voltage=30 V
• Emitter-base voltage=7 V
• Input-diode reverse voltage=6 V
• Input-diode forward current: Continuous 60 mA

Applications of 4N35 Optocoupler

• Remote terminal isolation
• SCR and Triac triggers
• Mechanical relays
• Pulse transformers

Related Links for 4N35 Optocoupler

• Other Products from OptoCouplers & OptoIsolators Category

Package Includes

• 1 X 4N35 Optocoupler
