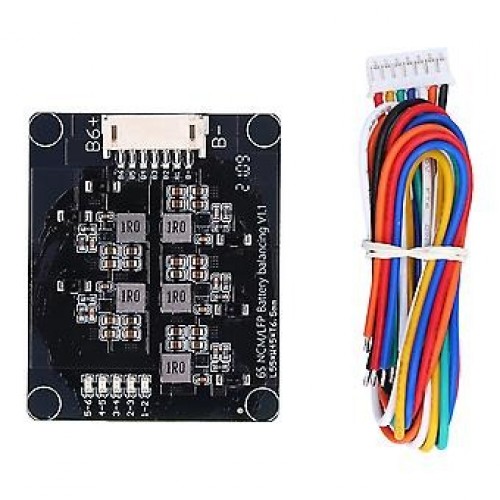

6S Active Balance Battery Management System Module

6S Active Balance Battery Management System Module

6S Active Balance Battery Management System Module

The 6S Active BMS Module is designed to monitor, protect, and balance a 6-cell lithium-ion battery pack. It continuously checks the voltage of each individual cell and actively redistributes charge between cells to keep them balanced, ensuring that no cell is overcharged or undercharged. This improves the overall performance and lifespan of the battery. The module also includes various protection mechanisms, such as overcharge, over-discharge, short-circuit, and overcurrent protection.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• 6-Series Cell Monitoring: Manages and monitors a battery pack of 6 lithium-ion cells in series (6S configuration).


• Active Cell Balancing: Actively balances the voltage across all cells, redistributing charge during charging and discharging to maintain equal cell voltage and prevent premature degradation.


• Overcharge Protection: Automatically stops charging when any cell exceeds the specified voltage threshold, preventing damage from overcharging.


• Over-Discharge Protection: Cuts off the load when any cell drops below the safe voltage threshold, avoiding deep discharge which can damage the battery.


• Overcurrent Protection: Limits the maximum current to prevent damage to the battery pack during operation.


• Short-Circuit Protection: Detects and stops the flow of current if a short circuit is detected in the system.


Specifications of 6S Active Balance Battery Management System Module

• Supported Battery Type: Lithium-ion or LiFePO4 batteries.


• Number of Cells: 6 cells in series (6S configuration).


• Balancing Current: Typical balancing current is around 50mA to 300mA per cell.


• Maximum Charge Current: Varies, typically 5A to 30A depending on the specific module.


• Maximum Discharge Current: Varies, typically 10A to 100A, depending on the module rating.


• Short Circuit Protection: Activated when a short circuit occurs, typically cutting off within 300µs to 500µs.


Package Includes

• 1 x 6S Active Balance Battery Management System Module
