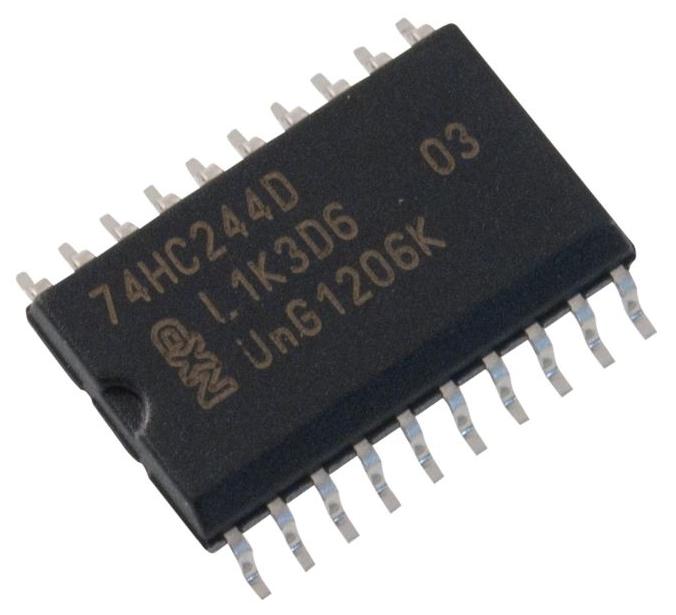

74HC244 8-bit 3 state Octal buffer & line driver IC

The 74HC244 are high speed CMOS OCTAL BUS BUFFER / Line Driver fabricated with silicon gate C2MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The 74HC244 are non-inverting 3-state buffers having two active-low output enables.

74HC244 is designed to be used with 3-state memory address drivers, etc. All inputs are equipped with protection circuits against static discharge or transient excess voltage. The internal circuit is composed of three stages, including a buffer output which provides high noise  immunity and stable output. The inputs tolerate voltages up to 7 V, allowing the interface of 5 V systems to 3 V systems.

Features Of 74HC244 IC

• High speed : tpd = 10 ns (typ.) at VCC = 6.0 V

• Low power dissipation : ICC = 4.0µA (max) at Ta = 25

• Balanced propagation delays : tPLH≈ tPHL

• Wide operating voltage range : VCC(opr) = 2.0 V to 6.0 V

Related Links

• 74HC244 Datasheet
