Product Images are shown for illustrative purposes only and may differ from actual product.

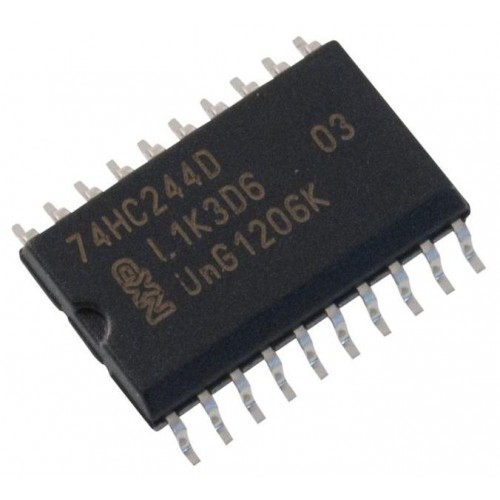

74HC244 SMD Octal Buffer IC

Write a review | 0 reviews

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-06-15
SKU: 1830 | DAB703

Rs. 42.48 (inc GST)
Rs.36.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

74HC244 SMD IC

74HC244 8-bit 3 state Octal buffer & line driver IC

The 74HC244 are high speed CMOS OCTAL BUS BUFFER / Line Driver fabricated with silicon gate C2MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The 74HC244 are non-inverting 3-state buffers having two active-low output enables.

74HC244 is designed to be used with 3-state memory address drivers, etc. All inputs are equipped with protection circuits against static discharge or transient excess voltage. The internal circuit is composed of three stages, including a buffer output which provides high noise immunity and stable output. The inputs tolerate voltages up to 7 V, allowing the interface of 5 V systems to 3 V systems.

Features Of 74HC244 IC

High speed : tpd = 10 ns (typ.) at VCC = 6.0 V
Low power dissipation : ICC = 4.0µA (max) at Ta = 25
Balanced propagation delays : tPLH≈ tPHL
Wide operating voltage range : VCC(opr) = 2.0 V to 6.0 V

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
