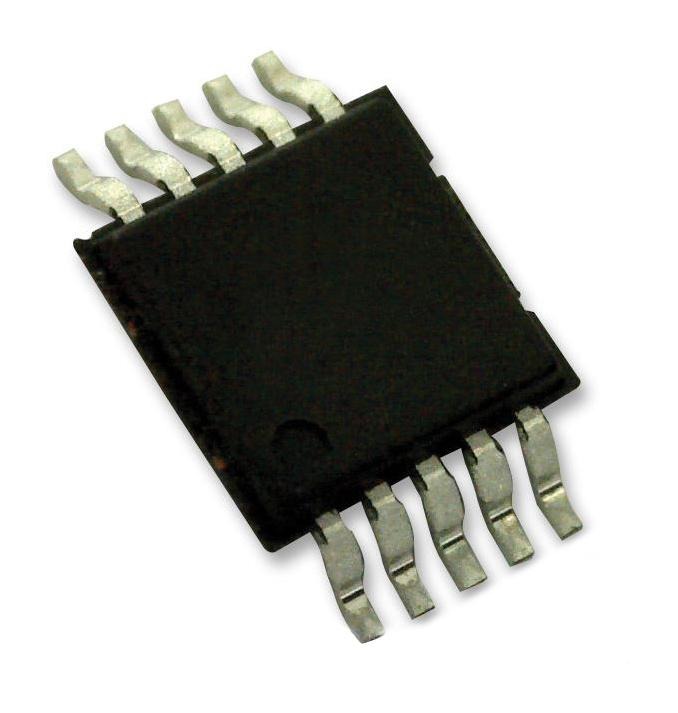

AD5258BRMZ10-R7 6-Bit Digital Potentiometer IC

AD5258 6-Bit Digital Potentiometer IC

AD5258BRMZ10-R7 6-Bit Digital Potentiometer with 256 positions and I2C compatibility.

The AD5258 6-Bit Digital Potentiometer IC offers a compact design suitable for various applications. It features a non-volatile memory that retains wiper settings, making it ideal for LCD panel adjustments and automotive electronics. With dimensions of 3 mm × 4.9 mm, it fits seamlessly into tight spaces while providing reliable performance.

This digital potentiometer functions similarly to mechanical potentiometers but delivers enhanced resolution and reliability. Its I2C-compatible interface simplifies integration into modern electronic designs. The AD5258 6-Bit Digital Potentiometer IC supports multiple resistance values, ensuring versatility in applications such as programmable power supplies and gain control.

Engineered for precision, this component is perfect for adjusting brightness and contrast in LCD panels or replacing mechanical potentiometers in new designs. Explore the capabilities of the AD5258 6-Bit Digital Potentiometer IC for your electronic projects.

Discover the reliability of the Potentiometer category at DNA. The AD5258 6-Bit Digital Potentiometer IC from a trusted manufacturer enhances your electronic designs. Check other Potentiometer that we have in stock.

At DNA, we cater to all your electronic component needs. If you're looking for specific parts, reach out to us. We can import items if they're not available. Explore related components like Capacitors, Nextion Displays, and MOSFETs. Contact Us.

Features of AD5258 6-Bit Digital Potentiometer IC

• Nonvolatile memory maintains wiper settings
• 64-position digital potentiometer
• Compact MSOP-10 (3 mm × 4.9 mm)
• I2C-compatible interface
• VLOGIC pin for interface flexibility
• End-to-end resistance options of 1 kΩ to 100 kΩ
• EEPROM stored resistance tolerance (0.1% accuracy)
• Power-on EEPROM refresh time <1 ms

Specification of AD5258 6-Bit Digital Potentiometer IC

• 256 positions
• MSOP-10 package
• I2C interface
• 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ resistance options
• 0.1% resistance tolerance
• <1 ms refresh time

Applications of AD5258 6-Bit Digital Potentiometer IC

• LCD panel VCOM adjustment
• LCD panel brightness and contrast control
• Mechanical potentiometer replacement
• Programmable power supplies
• RF amplifier biasing
• Automotive electronics adjustment

Related Links for AD5258 6-Bit Digital Potentiometer IC

• Other Products from Potentiometer Category

Package Includes

• 1 X AD5258 6-Bit Digital Potentiometer IC
