TL032 ENHANCED-JFET LOW-POWER LOW-OFFSET OPERATIONAL AMPLIFIERS IC

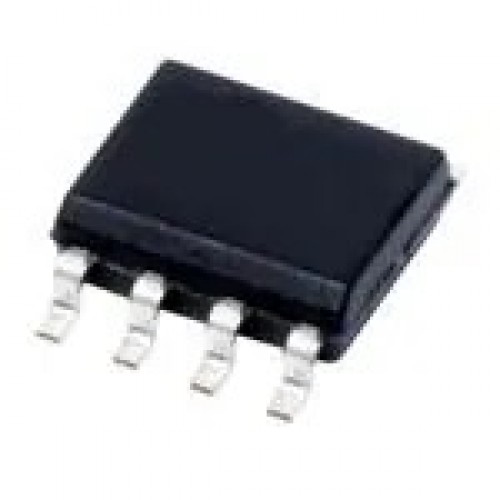

TL032 Enhanced JFET Operational Amplifier IC

TL032 Operational Amplifier with JFET input, low power consumption, and precision offset voltage trimming.

The TL032 Enhanced JFET Operational Amplifier IC is designed for precision in low-power applications. It features improved DC and AC characteristics, making it ideal for high-performance circuits. With on-chip zener trimming, the offset voltage can be as low as 1.5 mV, providing accuracy in DC-coupled applications. This amplifier is pin-compatible with TL06x, allowing for easy upgrades to existing designs.

The TL032 operates efficiently with a supply voltage range of ±3V to ±16V or 6V to 32V. It boasts a gain bandwidth product of 1.5 MHz and consumes only 0.4 mA per amplifier, ensuring low-power operation without compromising performance. The small form-factor TSSOP package makes it suitable for compact designs.

Applications for the TL032 Enhanced JFET Operational Amplifier include signal conditioning, sensor interfacing, and other precision amplification tasks. Explore how this component can enhance your electronic projects with its reliable performance and versatility.

Explore the range of Instrumentation Amplifiers at DNA. The Texas Instruments TL032 offers advanced performance for your circuit needs. Check other Instrumentation Amplifiers that we have in stock.

If you are searching for specific electronic components, DNA can assist you. We can import items not in stock and support both retail and bulk orders. Consider related components like Humidity & Temperature Sensors, Microcontrollers, Development Modules, Transistors, Sensors, and Hongfa Relays. Contact Us.

Features of TL032 Enhanced JFET Operational Amplifier IC

• Direct Upgrades for TL06x Low-Power BiFETs
• Low Power Consumption 6.5 mW/Channel Typ
• On-Chip Offset-Voltage Trimming for Improved DC Performance
• Higher Slew Rate and Bandwidth Without Increased Power Consumption
• Available in TSSOP for Small Form-Factor Designs

Specification of TL032 Enhanced JFET Operational Amplifier IC

• Input Type: JFET (low bias current, high input impedance)
• Supply Voltage Range: ±3V to ±16V (dual supply) or 6V to 32V (single supply)
• Input Offset Voltage: Typically 3mV, maximum 10mV
• Input Bias Current: Typically 20pA
• Quiescent Current: 0.4mA per amplifier
• Gain Bandwidth Product: 1.5 MHz

Applications of TL032 Enhanced JFET Operational Amplifier IC

• Signal conditioning
• Sensor interfacing
• Precision amplification
• Low-power applications
• High-performance circuits

Package Includes

• 1 X TL032 Enhanced JFET Operational Amplifier IC
