DAC7731EC 16-bit Digital-to-Analog Converter SMD IC

DAC7731 16-bit Digital-to-Analog Converter SMD IC

DAC7731EC 16-bit DAC with +10V reference, low power consumption, and unipolar or bipolar operation.

The DAC7731 16-bit Digital-to-Analog Converter SMD IC provides precision with 16-bit monotonic performance, ideal for applications like process control and data acquisition systems. It features a +10V internal reference and supports both unipolar and bipolar operation, making it versatile for various setups. The DAC7731 includes a high-speed output amplifier with a settling time of just 5μs, ensuring quick response times in automated systems.

Designed for industrial applications, the DAC7731 16-bit Digital-to-Analog Converter SMD IC supports a standard 3-wire SPI-compatible serial interface. This allows for efficient daisy-chaining of multiple DACs on a single bus, which is essential for complex electronic projects. Its low power consumption of only 100mW makes it a suitable choice for energy-efficient designs in electronic systems.

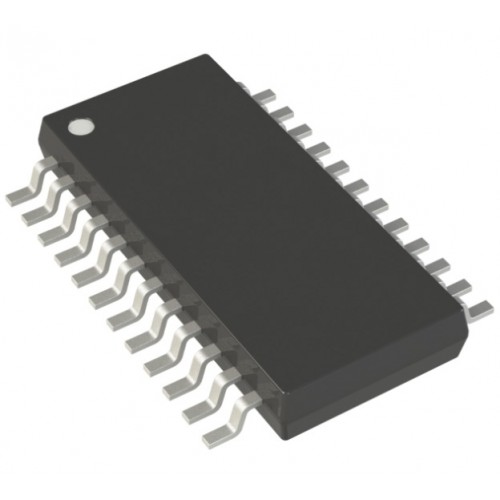

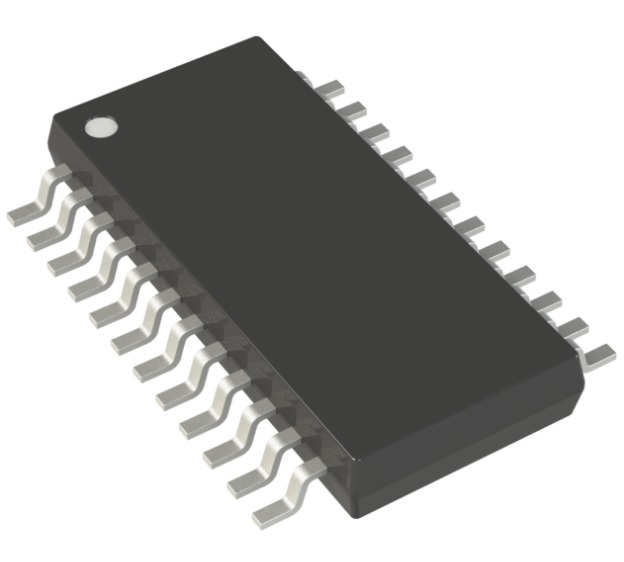

With an SSOP-24 package, the DAC7731 is compact and easy to integrate into various electronic circuits. Its applications span across process control, motor control, and closed-loop servo systems. Choose the DAC7731 16-bit Digital-to-Analog Converter SMD IC for reliable performance in your next project.

Explore the wide range of IC base & sockets at DNA. We offer top-quality components to enhance your electronic projects. Check other "IC base & Sockets" that we have in stock.

If you need specific electronic components, reach out to us. We can help import hard-to-find parts and support both retail and bulk orders. Check out related items like SMPS, Power Supply, and Sensors. Contact Us

Features of DAC7731 16-bit Digital-to-Analog Converter SMD IC

• Low power: 100mW maximum
• +10V internal reference
• Unipolar or bipolar operation
• Daisy-chain feature for multiple DACs
• Small SSOP-24 package
• Reset to zero or mid-scale
• Double-buffered data input

Specification of DAC7731 16-bit Digital-to-Analog Converter SMD IC

• Resolution: 16 bits
• Settling time: 5μs
• Output swing: ±10V, ±5V, +10V
• Interface: SPI-compatible
• Package: SSOP-24

Applications of DAC7731 16-bit Digital-to-Analog Converter SMD IC

• Process control
• Data acquisition systems
• Closed-loop servo control
• Motor control
• Automated test equipment

Package Includes

• 1 X DAC7731EC 16-bit Digital-to-Analog Converter SMD IC
