  • 2N3904C Switching Transistor

Product Images are shown for illustrative purposes only and may differ from actual product.

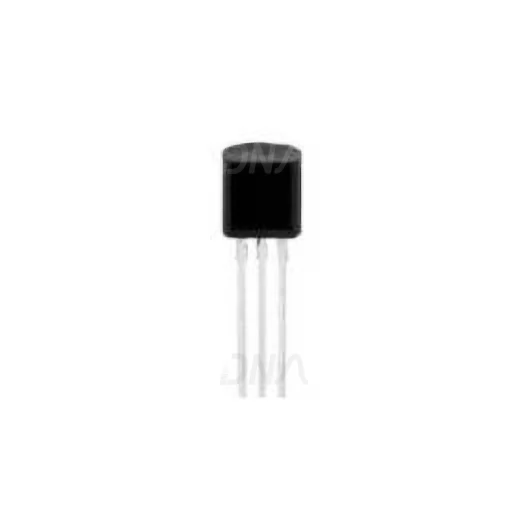

2N3904C Switching Transistor


Write a review | 0 reviews

  • Stock: 76
  • SKU: 0568 | DAA285
  • Rs. 3.54 (inc GST)
    Rs.3.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

2N3904C Switching Transistor

2N3904C Switching Transistor is a Epitaxial Planer NPN transistor.

FEATURES of 2n3904 switching Transistor

  • Low Leakage Current : ICEX=50nA(Max.), IBL=50nA(Max.) @VCE=30V, VEB=3V.

  • Excellent DC Current Gain Linearity.

  • Low Leakage Current : VCE(sat)=0.3V(Max.) @IC=50mA, IB=5mA.

  • Low Collector Output Capacitance : Cob=4pF(Max.) @VCB=5V.

  • Complementary to 2N3906C.

  • Collector-Base Voltage (VCBO)=60V

  • Collector-Emitter Voltage (VCEO)=40V

  • Emitter-Base Voltage (VEBO)=6V

  • Collector Current (IC)=200mA

  • Base Current (IB)=50mA

  • Junction Temperature (Tj)=150oC

  • Storage Temperature Range (Tstg)=-55 to 150oC

  • Collector Cut-off Current ICEX (VCE=30V, VEB=3V) =50 nA

  • Base Cut-off Current IBL (VCE=30V, VEB=3V) =50 nA

  • Collector-Base Breakdown Voltage (V(BR)CBO) IC=10ỌA, IE=0 60V

  • Collector-Emitter Breakdown Voltage (V(BR)CEO) IC=1mA, IB=0 40V
