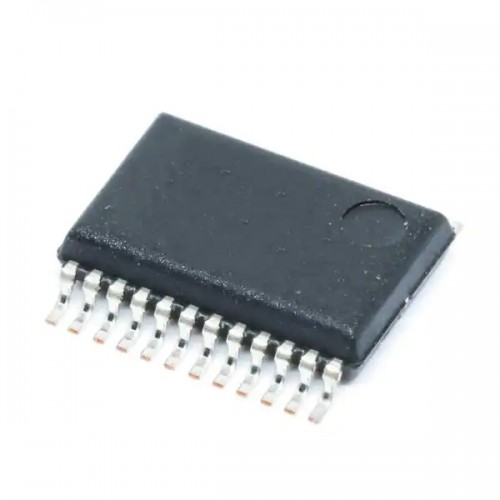

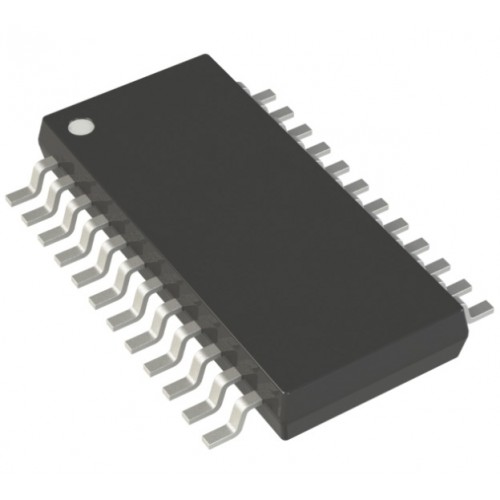

DAC7731EC 16-bit Digital-to-Analog Converter SMD IC
- Stock: Out Of Stock NotInStock
- SKU: 7095 | DAG978
-
Rs.
2,147.60 (inc GST)
Rs.1,820.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
DAC7731EC 16-bit Digital-to-Analog Converter SMD IC
DAC7731EC 16-bit Digital-to-Analog Converter SMD IC
The DAC7731 is a 16-bit Digital-to-Analog Converter (DAC) which provides 16 bits of monotonic performance over the specified operating temperature range and offers a +10Vinternal reference. Designed for automatic test equipment and industrial process control applications, the DAC7731 output swing can be configured in a ±10V, ±5V, or +10Vrange. The flexibility of the output configuration allows the DAC7731 to provide both unipolar and bipolar operation by pin strapping. The DAC7731 includes a high-speed output amplifier with a maximum settling time of 5μs to ±0.003%FSR for a 20V full-scale change and only consumes 100mW(typical) of power. The DAC7731 features a standard 3-wire, SPI-compatible serial interface with double buffering to allow asynchronous updates of the analog output as well as a serial data output line for daisy-chaining multiple DAC7731s.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of DAC7731EC 16-bit Digital-to-Analog Converter SMD IC
- low power: 150mw maximum
- +10v internal reference
- unipolar or bipolar operation
- daisy-chain feature for multipledac7731s on a single bus
- small ssop-24 package
- reset to zero or mid-scale
- double-buffered data input
Applications of DAC7731EC 16-bit Digital-to-Analog Converter SMD IC
- process control
- ate pin electronics
- closed-loop servo control
- motor control
- data acquisition systems
Package Includes
1 x DAC7731EC 16-bit Digital-to-Analog Converter SMD IC
