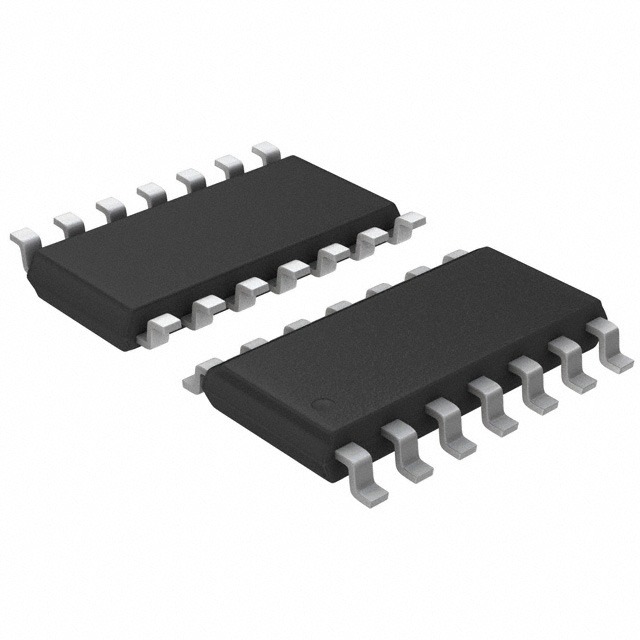

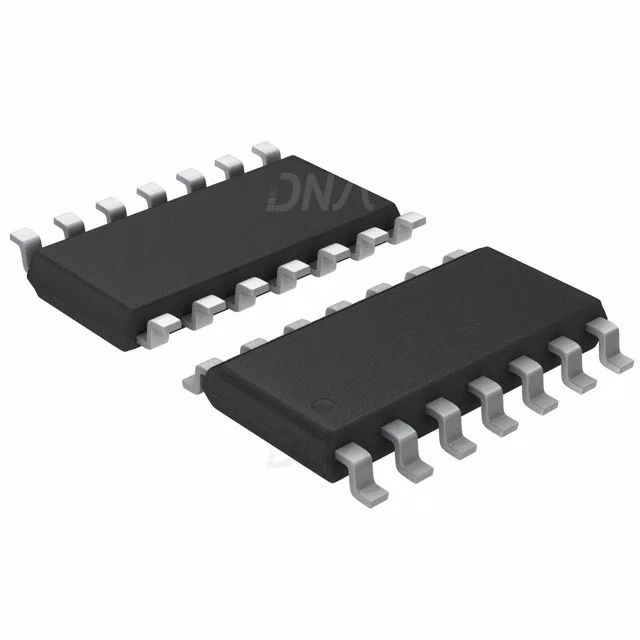

SN74LS14DR Hex Schmitt trigger Inverter IC


Write a review | 0 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-02-18

  • SKU: 7242 | DAG930

Availability: NotInStock priceValidUntil: 2026-02-18

  • Rs. 49.09 (inc GST)
    Rs.41.60 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SN74LS14DR Hex Schmitt trigger Inverter IC

SN74LS14DR Hex Schmitt trigger Inverter IC

The SN74LS14DR is a hex Schmitt-trigger inverter IC from Texas Instruments. It belongs to the 74LS family, which is known for low power consumption and high-speed logic circuits. The IC is designed to perform the logic inversion function, where the output is the inverted input signal. The Schmitt-trigger functionality allows for noise immunity and clean signal transitions, making it ideal for applications with noisy input signals or slow input transitions.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SN74LS14DR Hex Schmitt trigger Inverter IC

  • Hex Inverter with Schmitt Trigger: Contains six independent inverters, each with a Schmitt-trigger input.
  • Schmitt-trigger Action: Provides hysteresis, which enhances noise immunity and provides clean digital transitions.
  • Low Power Consumption: As a member of the LS family, it operates with low power consumption.
  • Wide Operating Voltage Range: Typically operates at 5V but is designed to be compatible with TTL (Transistor-Transistor Logic) levels.
  • High Noise Immunity: Capable of handling noisy environments due to its Schmitt-trigger design.
  • TTL-Compatible Inputs: Can be used in circuits with standard TTL logic levels.

Specifications of SN74LS14DR Hex Schmitt trigger Inverter IC

  • Supply Voltage (VCC): 4.75V to 5.25V
  • Input Hysteresis: 800 mV (typical)
  • Power Dissipation: 30 mW (typical)
  • Operating Temperature Range: 0°C to 70°C
  • Package Type: SOIC-14 (Surface-Mount Device)
  • Number of Pins: 14
  • Pin Configuration: 6 inverters with Schmitt-trigger inputs

    Package Includes

    • 1 x SN74LS14DR Hex Schmitt trigger Inverter IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
