Product Images are shown for illustrative purposes only and may differ from actual product.

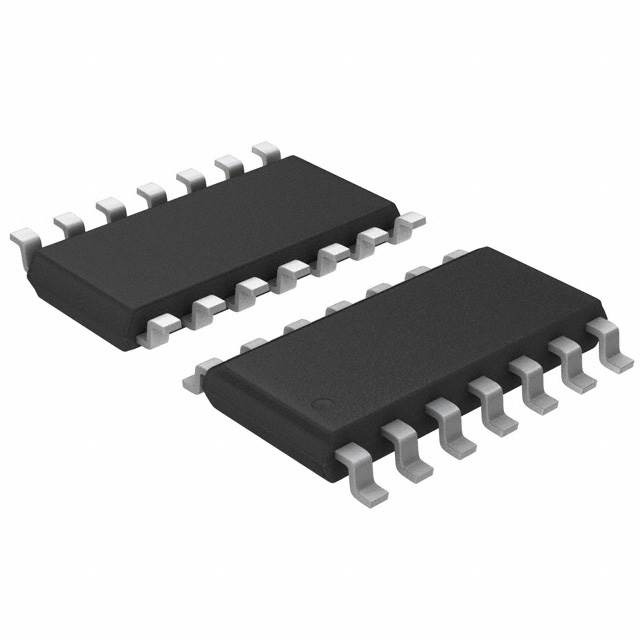

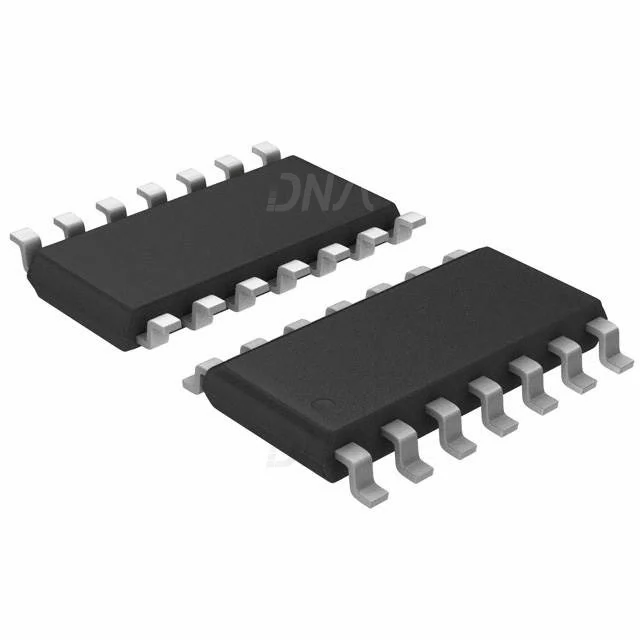

L6391 High voltage high and low-side driver (SO14) IC


Write a review | 1 reviews

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-10-20

  • SKU: 7385 | DAH152

Availability: NotInStock priceValidUntil: 2026-10-20

  • Rs. 106.20 (inc GST)
    Rs.90.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

L6391 High Voltage Half-Bridge Driver IC

L6391 driver IC for N-channel MOSFET; 600 V high-side; 290 mA current capability.

The L6391 High Voltage Half-Bridge Driver IC is designed for N-channel power MOSFET and IGBT applications. This device operates at a high-side voltage rail of up to 600 V, making it suitable for demanding environments. Its CMOS/TTL compatible inputs allow easy interfacing with microcontrollers and DSPs, enhancing integration in various systems.

This driver IC features an integrated comparator for fault protection, ensuring reliable operation in applications such as home appliances and industrial drives. With a driver current capability of 290 mA, it supports efficient switching, making it ideal for use in factory automation and HID ballasts.

The L6391 High Voltage Half-Bridge Driver IC offers fast switching times of 75/35 ns with a 1 nF load. This performance, combined with its robust design, makes it a reliable choice for power supply units and motor drivers. Choose the L6391 for your next project and experience superior performance.

Explore the best in Motor Driver technology with DNA solutions. The L6391 from our trusted brand offers reliability for your projects. Check other Motor Driver that we have in stock.

If you are searching for specific electronic components, we can help. At DNA, we support retail and bulk orders. We can also import items if necessary. Explore related products like Sensors, Hongfa Relays, and MOSFETs. Contact Us.

Features of L6391 High Voltage Half-Bridge Driver IC

  • High voltage rail up to 600 V
  • dV/dt immunity ± 50 V/nsec
  • Driver current capability: 290 mA source
  • Switching times 75/35 nsec rise/fall with 1 nF load
  • Integrated bootstrap diode
  • Comparator for fault protections

Specification of L6391 High Voltage Half-Bridge Driver IC

  • High-side voltage: 600 V
  • Driver current: 290 mA
  • Switching time: 75/35 nsec
  • Input compatibility: 3.3 V, 5 V TTL/CMOS

Applications of L6391 High Voltage Half-Bridge Driver IC

  • Motor driver for home appliances
  • Factory automation
  • Industrial drives
  • HID ballasts
  • Power supply units

Package Includes

  • 1 X L6391 High Voltage Half-Bridge Driver IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
