FTDI UMFT260EV1A Evaluation Board, HID Class USB to UART/I2C Module

FTDI UMFT260EV1A Evaluation Board, HID Class USB to UART/I2C Module

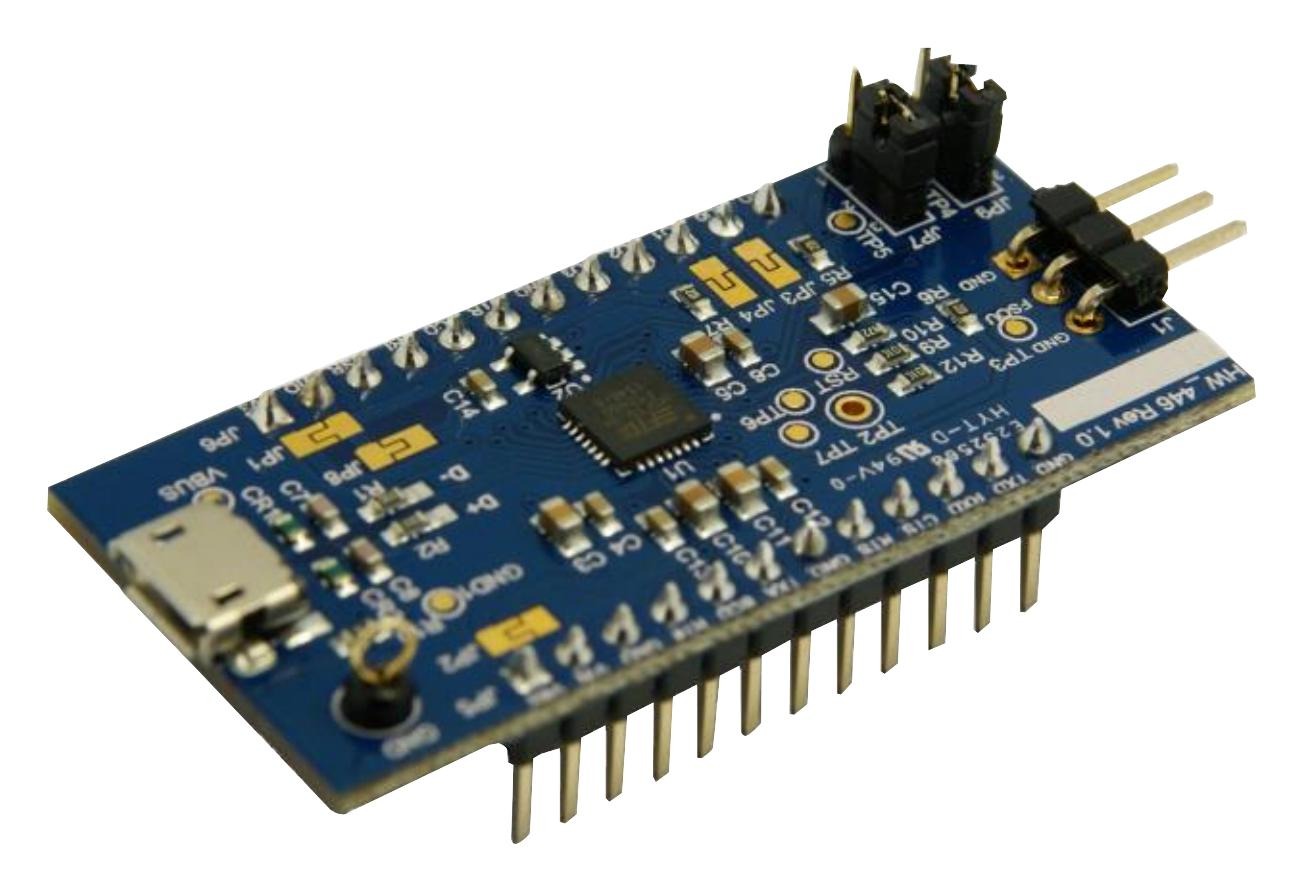

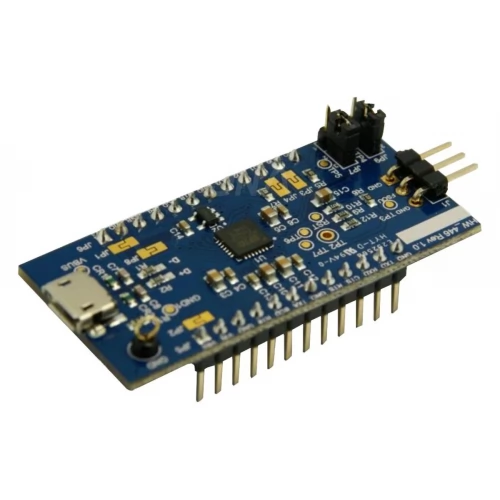

The UMFT260EV1A is a development module for FTDI’s FT260, HID-class USB to UART/I2C Bridge IC. The UMFT260EV1A is ideal for development purposes to quickly prove functionality of adding USB to a target design. The UMFT260EV1A is a module which is designed to plug into a standard 0.8” wide 24 pin DIP socket. The USB connection to a host system is via a Micro USB-B connector.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

• On-board Micro USB-B type Connector allows module to connect to a host system via USB A to Micro B cable

• On-board I2C 2kbits EEPROM to contain FT260 configuration settings and vendor specific parameters

• Jumpers for selecting the FT260 HID interfaces configuration

• Solder jumpers for configuring the FT260Q to be in USB Bus powered or Self-powered modes

Applications of FTDI UMFT260EV1A Evaluation Board, HID Class USB to UART/I2C Module

• USB to UART or I2C communication for microcontroller debugging.

• HID interface applications where plug-and-play USB connectivity is required.

• Interfacing USB with UART/I2C devices in prototyping environments.

• USB-based control and monitoring systems, especially for devices needing HID class support.

Package Includes

• 1 x FTDI UMFT260EV1A Evaluation Board, HID Class USB to UART/I2C Module
