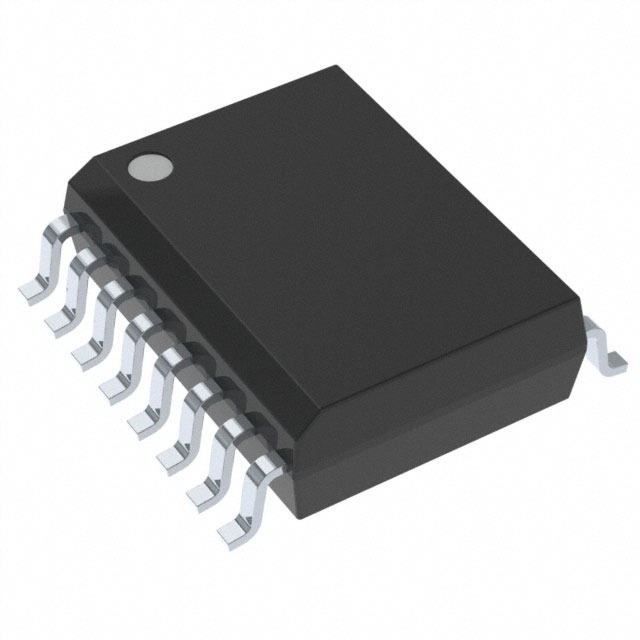

UC28023DWR HIGH-SPEED PWM 16PIN CONTROLLER SOIC

UC28023DWR High-Speed PWM Controller IC

UC28023DWR PWM Controller for high-frequency power supplies with 1 MHz operation, 1.5-A outputs, and wide bandwidth error amplifier.

The UC28023DWR High-Speed PWM Controller IC is designed for high-frequency switched-mode power supply applications. This controller operates at a fixed frequency and supports single-ended topologies, making it ideal for a range of power supply designs. With a peak current mode, average current mode, or voltage mode control, it provides flexibility for various applications.

This PWM controller features a practical operation up to 1 MHz and a 50-ns propagation delay to the output. The ±1.5-A peak totem pole outputs ensure efficient driving of external MOSFETs. The UC28023DWR also includes a wide bandwidth error amplifier, offering precision in voltage regulation, which is crucial for reliable power supply performance.

Applications of the UC28023DWR High-Speed PWM Controller IC include off-line and DC/DC power supplies, making it suitable for single-ended or two-switch topology designs. Its robust design and minimal external component requirements make it a cost-effective choice for engineers in India looking to enhance their power supply solutions.

At DNA, we provide quality solutions in the Power Devices category from trusted manufacturers. Explore the UC28023DWR High-Speed PWM Controller and see other products in this category. Check other Power Devices that we have in stock.

If you need specific electronic components, reach out to us. We can help you find parts like Capacitors, Power Supplies, Diodes, and more. We also offer import options for hard-to-find items, supporting both retail and bulk orders. Contact Us

Features of UC28023DWR High-Speed PWM Controller IC

• Peak Current Mode Control
• Average Current Mode Control
• Voltage Mode Control with Feed-Forward
• Practical Operation Up to 1 MHz
• 50-ns Propagation Delay
• ±1.5-A Peak Totem Pole Outputs
• 9-V to 30-V Operational Voltage Range
• Wide Bandwidth Error Amplifier
• Programmable Maximum Duty Cycle Control

Specification of UC28023DWR High-Speed PWM Controller

• 16-Pin SOIC Package
• Operating Frequency up to 1 MHz
• Input Voltage Range 9-V to 30-V

Applications of UC28023DWR High-Speed PWM Controller IC

• Off-Line Power Supplies
• DC/DC Converters
• Voltage Mode Control Applications
• Peak Current Mode Control Applications
• Average Current Mode Control Applications

Package Includes

• 1 X UC28023DWR HIGH-SPEED PWM 16PIN CONTROLLER SOIC
