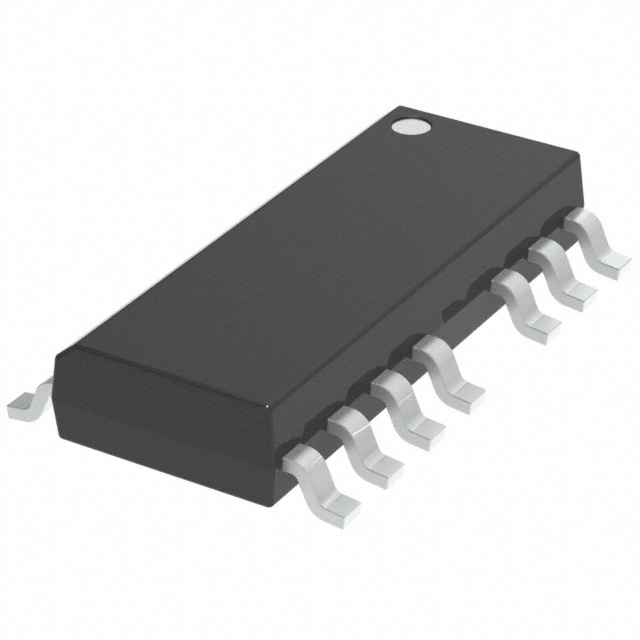

NCP1397BDR2G AC/DC Converter SMD IC

NCP1397BDR2G AC/DC Converter SMD IC

The NCP1397BDR2G AC/DC Converter SMD IC is a high-performance controller IC designed for resonant half-bridge topologies in power supply applications. It integrates multiple protection features and offers high efficiency with minimal external components. With a built-in high-speed driver, it directly drives MOSFETs in half-bridge configurations. The NCP1397B includes functions such as adjustable operating frequency, brown-out protection, over-current and over-voltage protection, ensuring reliable and robust power conversion. Its compact SMD package makes it ideal for modern, space-constrained power designs.

DNA solutions, Nashik has various types of Converter IC's. Check out our complete collection of Converter IC's.

Features of NCP1397BDR2G AC/DC Converter SMD IC

• Optimized for resonant half-bridge power supplies

• Integrated high-speed MOSFET drivers

• Adjustable operating frequency for design flexibility

• Comprehensive protection features

• High efficiency with reduced external components

• Compact SMD package for space-constrained designs

Specifications of NCP1397BDR2G AC/DC Converter SMD IC

• Input voltage range: Up to 600V

• Operating frequency: 50 kHz to 500 kHz

• UVLO (Under-voltage lockout): Yes

• Integrated drivers: High/low side MOSFET drivers

• Protection: Over-current, over-voltage, brown-out

Applications of NCP1397BDR2G AC/DC Converter SMD IC

• High-efficiency AC-DC power supplies

• PC and server power supplies

• Flat-panel display power modules

• LED lighting power drivers

Package Includes

      1 x NCP1397BDR2G AC/DC Converter SMD IC
