CD4504 SMD IC

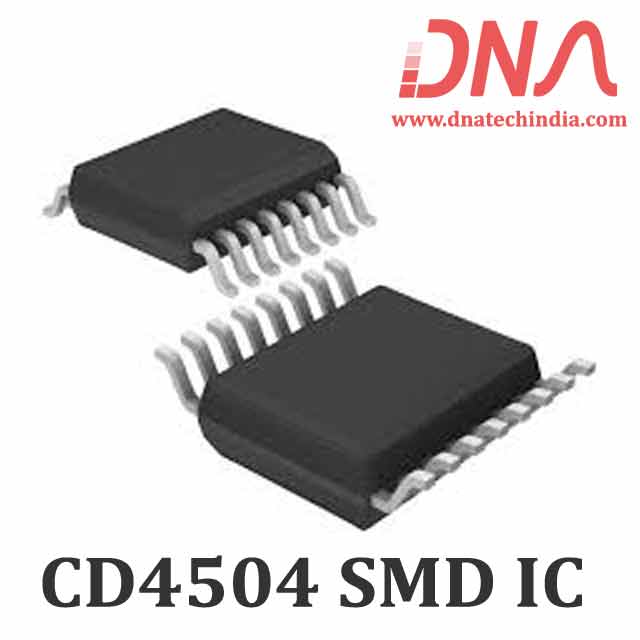

CD4504 SMD Hex Voltage Level Shifter IC

CD4504BMS Hex Voltage Level Shifter for TTL to CMOS level translation with 20V rating and compatibility.

The CD4504 SMD Hex Voltage Level Shifter IC enables seamless signal translation between different voltage levels. It features six circuits that shift input signals from VCC to VDD logic levels. This product is essential for projects requiring conversion of TTL signals to CMOS logic levels. Its select input allows for easy configuration between high and low logic states, ensuring versatility in applications. The CD4504 SMD Hex Voltage Level Shifter IC supports up and down level shifting, making it suitable for various electronic designs in India. Its compatibility with both CMOS and TTL standards enhances its usability across different platforms.

This IC is designed with a 20V rating, ensuring reliability under a wide range of conditions. It has been 100% tested for quiescent current, providing confidence in its performance. The CD4504 SMD Hex Voltage Level Shifter IC is perfect for engineers and hobbyists looking for robust solutions in electronic component design. Its standardized symmetrical output characteristics make it an excellent choice for diverse applications.

Explore a wide range of electronic components at DNA, including the reliable CD4504 from leading manufacturers. Our selection in the Components & IC's category meets the needs of various projects. Check other "Components & IC's" that we have in stock.

If you're searching for specific electronic parts, DNA can help. We can import components if they're not available. We support both retail and bulk orders. Consider related items like Crystal, Humidity & Temperature Sensor, Microcontroller, Capacitor, SMPS, and LCD. Contact Us.

Features of CD4504 SMD Hex Voltage Level Shifter IC

• High Voltage Type (20V Rating)
• Independence of Power Supply Sequence Considerations
• Up and Down Level Shifting Capability
• Shiftable Input Threshold for Either CMOS or TTL
• 100% Tested for Quiescent Current at 20V
• Standardized Symmetrical Output Characteristics

Specification of CD4504 SMD Hex Voltage Level Shifter IC

• 5V, 10V and 15V Parametric Ratings
• Six Circuits for Signal Shifting
• VCC to VDD Logic Level Translation

Applications of CD4504 SMD Hex Voltage Level Shifter IC

• TTL to CMOS signal translation
• Level shifting in microcontroller projects
• Voltage level adaptation in IoT devices

Related Links for CD4504 SMD Hex Voltage Level Shifter IC

• Other Products from Components & IC's Category

Package Includes

• 1 X CD4504 SMD Hex Voltage Level Shifter IC
