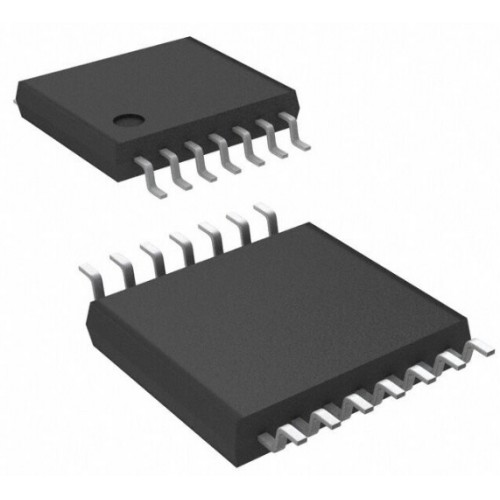

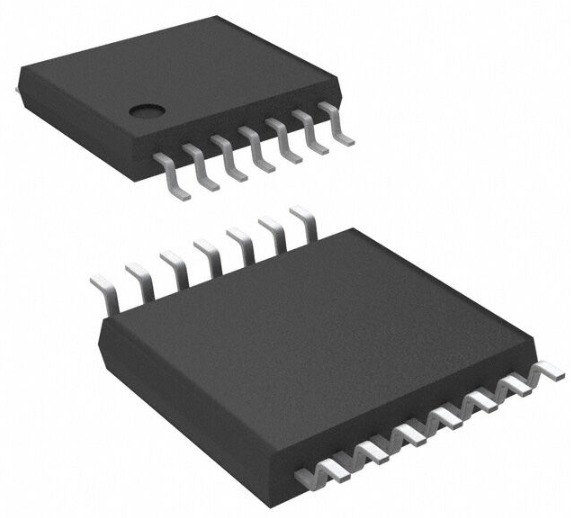

74VHC14MTCX high speed CMOS Hex Schmitt Inverter SMD IC

74VHC14MTCX high speed CMOS Hex Schmitt Inverter SMD IC

The 74VHC14MTCX is part of the 74-series logic family and features six independent Schmitt trigger inputs with inverting outputs. Schmitt triggers are used to improve signal integrity by rejecting noise and providing clean transitions for digital circuits.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• High-Speed CMOS Technology: Ensures faster operation compared to traditional TTL logic

• Inverting Outputs: Output signal is the inverse of the input

• High Noise Immunity: Capable of operating in electrically noisy environments

• ESD Protection: Enhanced durability against electrostatic discharge

Specifications of 74VHC14MTCX high speed CMOS Hex Schmitt Inverter SMD IC

• Logic Family: VHC (Very High-Speed CMOS)

• Number of Gates: 6 (Hex inverting)

• Supply Voltage Range (Vcc): 2.0V to 5.5V

• Input Voltage Range (Vin): 0V to Vcc

• Output Voltage Range (Vout): 0V to Vcc

• Package Type: TSSOP-14

Applications of 74VHC14MTCX high speed CMOS Hex Schmitt Inverter SMD IC

• Signal Conditioning

• Oscillators and Timers

• Switch Debouncing

• Pulse Shaping

• Embedded Systems

Package Includes

      1 x 74VHC14MTCX high speed CMOS Hex Schmitt Inverter SMD IC
