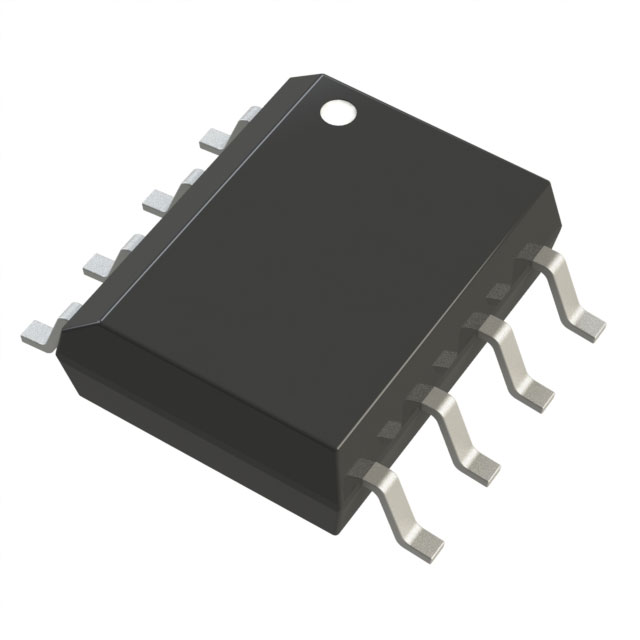

NCP1252ADR2G Converter Offline Fly back, Forward Topology SMD IC

NCP1252ADR2G Converter Offline Flyback Forward Topology SMD IC

NCP1252ADR2G Converter IC for flyback and forward topology with adjustable frequency and overcurrent protection.

The NCP1252ADR2G Converter Offline Flyback Forward Topology SMD IC is an efficient current-mode PWM controller tailored for AC-DC converters. It supports both flyback and forward topologies, making it versatile for various applications. Key features include adjustable frequency up to 500 kHz and built-in overcurrent protection, ensuring reliability in power supply designs. With a compact SOIC-8 package, this IC is perfect for use in adapters, chargers, and auxiliary power supplies in consumer electronics.

Designed with frequency jittering for EMI reduction, the NCP1252ADR2G enhances light load efficiency through skip-cycle operation. Its performance in set-top boxes, TVs, and LED drivers makes it an ideal choice for modern electronic devices. Operating within a temperature range of –40°C to +125°C, this component is suitable for various environmental conditions.

For Indian customers, the NCP1252ADR2G Converter ensures a reliable solution for power supply challenges. Explore how this product can enhance your electronic designs and improve overall efficiency.

Explore high-quality Power Devices from DNA. The NCP1252ADR2G Converter IC is a reliable choice for efficient power management. Check other Power Devices that we have in stock.

If you need specific electronic components, reach out to us. We can import parts if not available and support both retail and bulk orders. Check out our range including Programmer, Analog IC, Resistor, Humidity & Temperature Sensor, Microcontroller, and Development Module. Contact Us.

Features of NCP1252ADR2G Converter Offline Flyback Forward Topology SMD IC

• Supports flyback and forward converter topologies
• Current-mode control with cycle-by-cycle current limiting
• Adjustable switching frequency up to 500 kHz
• Frequency jittering for improved EMI performance
• Skip-cycle mode for low standby power
• Soft-start function to reduce inrush current

Specification of NCP1252ADR2G Converter Offline Flyback Forward Topology SMD IC

• Input Voltage: 10V to 28V
• Operating Frequency: 25 kHz to 500 kHz
• Gate Drive Current: 500 mA
• Standby Power Consumption: < 100 mW
• Output Type: PWM signal for external MOSFET
• Topology Supported: Flyback, Forward
• Operating Temperature: –40°C to +125°C

Applications of NCP1252ADR2G Converter Offline Flyback Forward Topology SMD IC

• Set-top boxes and TVs
• LED drivers
• Consumer electronics power supplies
• Battery charger circuits

Package Includes

• 1 X NCP1252ADR2G Converter Offline Flyback Forward Topology SMD IC
