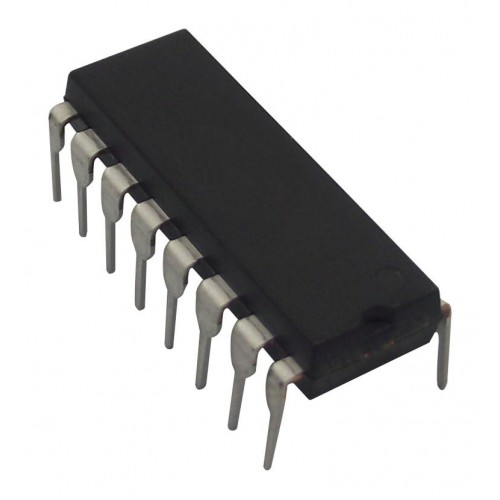

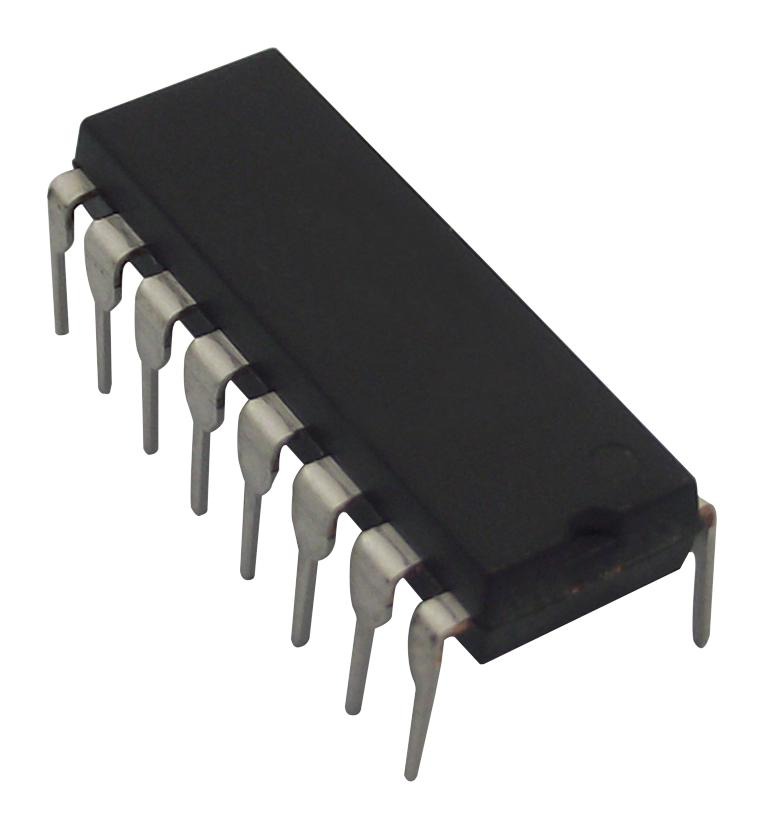

Product Images are shown for illustrative purposes only and may differ from actual product.

Analog Devices ADG411BNZ Precision Quad SPST Analog Switch

  • Stock: Out Of Stock

    Availability: NotInStock priceValidUntil: 2026-12-20

  • Brand: Analog Devices
  • SKU: 11335 | DAH805

Availability: NotInStock priceValidUntil: 2026-12-20

  • Rs. 1,273.34 (inc GST)
    Rs.1,079.10 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Analog Devices ADG411BNZ Precision Quad SPST Analog Switch

ADG411BNZ precision quad SPST analog switch with four independent channels, 25 Ω typical on resistance and break-before-make switching.

Analog Devices ADG411BNZ is a quad SPST analog switch that connects or disconnects four analog paths. Each channel works independently. With dual supplies, it supports analog signals up to ±15 V.
Its low on resistance helps limit signal loss. Break-before-make switching prevents two paths from connecting during a switch transition, while bidirectional operation lets each channel pass signals in either direction. TTL- and CMOS-compatible inputs provide control from common logic levels.
Use this device for audio and video switching, test equipment, precision data acquisition and sample-and-hold systems. Its four channels support multi-channel analog signal routing in a single device.
DNA serves electronics buyers with components from Analog Devices and other brands. Explore MISC ANALOG IC's for analog signal control and design needs. Check other MISC ANALOG IC's that we have in stock
If you cannot find a part, contact DNA for import support and retail or bulk supply. Ask about related Analog ICs, DC to DC Converter ICs, IGBTs or Digital ICs for your build. Contact Us

Features of Analog Devices ADG411BNZ Precision Quad SPST Analog Switch

  • Four independently controlled analog switches
  • Each switch passes signals in either direction when on
  • Break-before-make action helps prevent overlap between switch paths
  • TTL- and CMOS-compatible logic inputs
  • Low charge injection helps limit switching transients

Specifications of Analog Devices ADG411BNZ Precision Quad SPST Analog Switch

  • Maximum supply voltage difference: 44 V (absolute maximum, VDD to VSS)
  • Analog signal range: VSS to VDD
  • On resistance: 25 Ω typical, 35 Ω maximum at +25°C with dual supplies
  • Switching times: tON 110 ns typical/175 ns maximum and tOFF 100 ns typical/145 ns maximum (RL = 300 Ω, CL = 35 pF, VS = ±10 V)
  • Charge injection: 5 pC typical with dual supplies
  • Operating temperature: −40°C to +85°C
  • Package: 16-lead P-DIP

Applications of Analog Devices ADG411BNZ Precision Quad SPST Analog Switch

  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Sample-and-hold systems

Related Links for Analog Devices ADG411BNZ Precision Quad SPST Analog Switch

Package Includes

  • 1 X Analog Devices ADG411BNZ Precision Quad SPST Analog Switch
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
