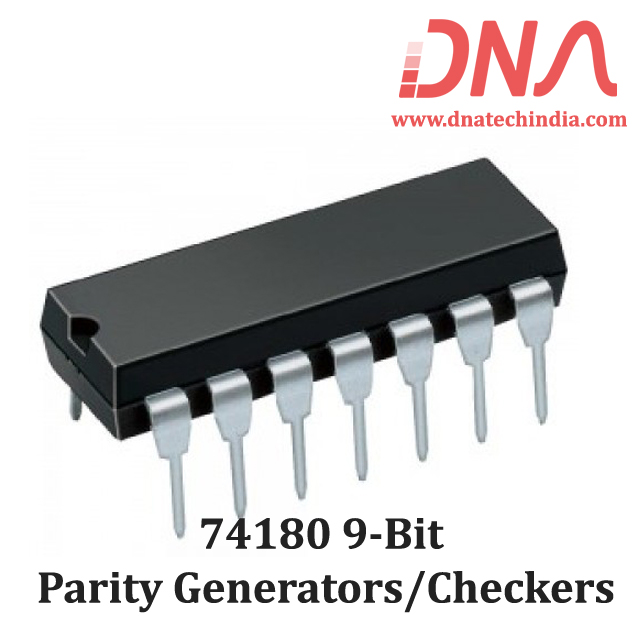

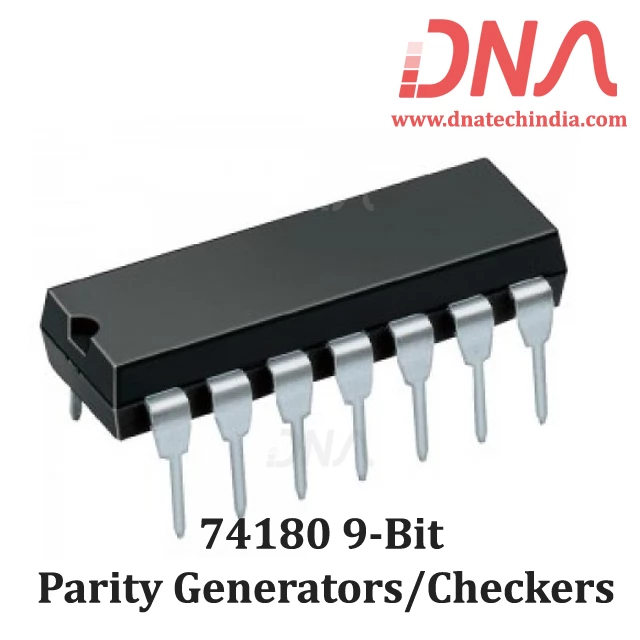

74180 9-Bit Parity Generators/Checkers

74180 9-Bit Parity Generator/Checker

74180 9-Bit Parity Generator/Checker with odd/even outputs; Supply Voltage 7V; Operating Temperature 0°C to 70°C.

The 74180 9-Bit Parity Generator/Checker is designed for efficient parity generation and checking in digital circuits. It supports both odd and even parity applications, making it versatile for various electronic projects. This component features input buffers that allow for connection to normalized series 54/74 loads, ensuring reliable performance in high-speed operations. With a supply voltage of 7V and an operating temperature range of 0°C to 70°C, the 74180 is suitable for a wide range of applications in India.

Engineers can easily cascade multiple 7400 Series IC 74180 units to expand word-length capabilities. The device's outputs provide a full fan-out to 10 normalized loads at low logic levels and up to 20 at high logic levels. This flexibility aids in maintaining system integrity and performance. Ideal for educational purposes, prototyping, or industrial applications, this IC meets the needs of various projects.

Explore the reliability and performance of the 74180 9-Bit Parity Generator/Checker for your electronic designs. It is a key component for anyone working with digital logic systems, ensuring accurate data transmission and integrity.

Discover the reliability of the 7400 Series IC's from DNA. These components are essential for digital logic applications. Check other "7400 Series IC's" that we have in stock.

At DNA, we cater to all your electronic needs. If you can't find specific parts, just reach out. We can import for you and support both retail and bulk purchases. Consider our related items like Development Boards, Power Supply, Resistors, and more. Contact Us.

Features of 74180 9-Bit Parity Generator/Checker

• Odd/even outputs
• Cascadable for extended word length
• Input buffers for normalized loads
• High fan-out capabilities
• Operating temperature range 0°C to 70°C.

Specification of 74180 9-Bit Parity Generator/Checker

• Supply Voltage 7V
• Input Voltage 5.5V
• Storage Temperature Range -65°C to 150°C.

Applications of 74180 9-Bit Parity Generator/Checker

• Digital circuit design
• Data integrity checks
• Educational projects
• Prototyping
• Industrial applications.

Package Includes

• 1 X 74180 9-Bit Parity Generator/Checker
