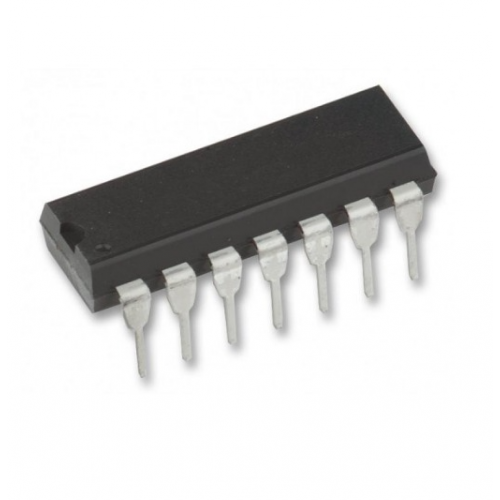

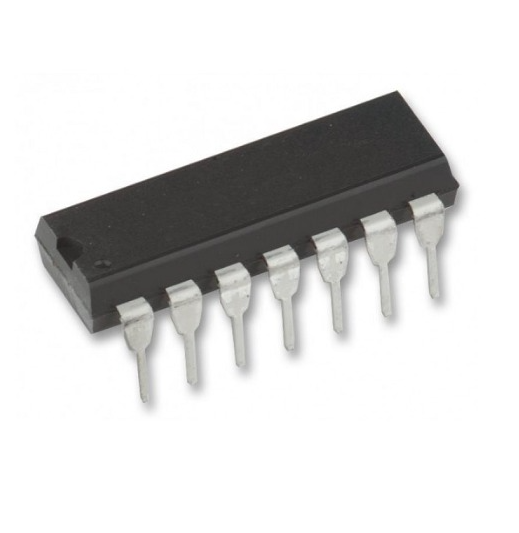

• 74LS00 Quad 2 Input NAND Gate DIP IC

Product Images are shown for illustrative purposes only and may differ from actual product.

74LS00 Quad 2 Input NAND Gate DIP IC

  • Stock: Out Of Stock
  • SKU: 8870 | DAI210
  • Rs. 17.94 (inc GST)
    Rs.15.20 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

74LS00 Quad 2 Input NAND Gate DIP IC

74LS00 Quad 2 Input NAND Gate DIP IC

The 74LS00 is a 14-Pin Quad 2-Input NAND Gate IC. This device contains four independent gates each of which performs the logic NAND function. NAND gates utilize advanced silicon-gate CMOS technology to achieve operating speeds with the low power consumption of standard CMOS integrated circuits. All gates have buffered outputs.

DNA solutions, Nashik has various types of Gate IC's. Check out our complete collection of Gate IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of 74LS00 Quad 2 Input NAND Gate DIP IC

  • Quad 2-Input NAND Gates: Contains four independent 2-input NAND gates in a single IC.
  • TTL Logic Family: Belongs to the LS (Low Power Schottky) TTL series.
  • Low Power Consumption: Uses low-power Schottky diode technology for reduced power usage.
  • Standard TTL Inputs/Outputs: Compatible with other TTL and CMOS logic level.
  • Input Clamp Diodes: Protects against high-speed transients.

Specifications of 74LS00 Quad 2 Input NAND Gate DIP IC

  • IC Type: Gate IC
  • Gate IC Type: NAND
  • Supply Voltage (V): 5.25 V
  • Operating Temperature (°C): 0 to 70

Applications of 74LS00 Quad 2 Input NAND Gate DIP IC

  • Digital Circuit Design
  • Switch Debouncing
  • Memory Address Decoding
  • Security and Alarm Systems

    Package Includes

          1 x 74LS00 Quad 2 Input NAND Gate DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
