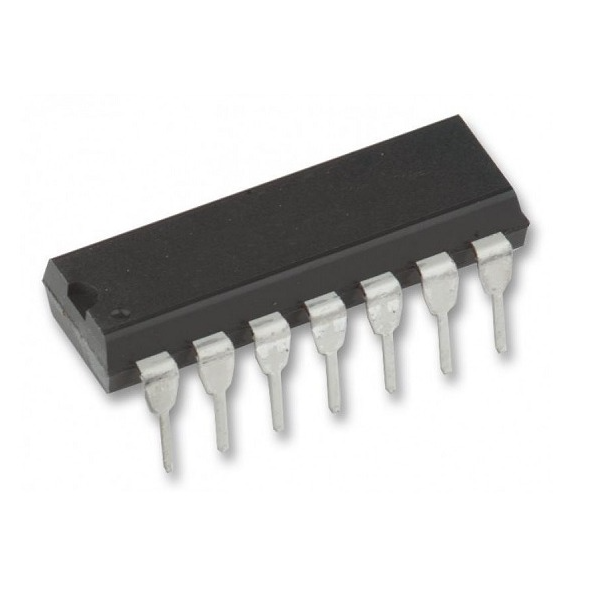

74LS32 Quad 2-Input OR Gate DIP IC

74LS32 Quad 2-Input OR Gate DIP IC

74LS32 Quad 2-Input OR Gate IC with TTL-compatible inputs, 4.75V to 5V supply voltage, and low power consumption.

The 74LS32 Quad 2-Input OR Gate DIP IC offers reliable logic operations for various applications. This integrated circuit features four independent 2-input OR gates with TTL-compatible inputs and outputs, making it suitable for digital logic control and signal routing. With a supply voltage range of 4.75V to 5V, it operates efficiently in both low-power and high-speed environments.

Designed for versatility, the 74LS32 Quad 2-Input OR Gate DIP IC is ideal for arithmetic circuits, data selection, and alarm systems. Its compact DIP-14 package enables easy integration into various electronic projects. The IC operates within a temperature range of 0°C to +70°C, ensuring stability for indoor applications.

Explore the potential of the 74LS32 Quad 2-Input OR Gate DIP IC in your next project. Its low supply current of 38 µA and propagation delay time of 22 ns make it a dependable choice for timing circuits and more. Upgrade your designs with this efficient component.

Explore the world of reliable logic operations with DNA's selection of 7400 Series IC's. The 74LS32 from a trusted Brand/Manufacturer is perfect for a variety of applications. Check other "7400 Series IC's" that we have in stock.

If you need specific electronic components, reach out to us. We can support retail and bulk orders and can import items if they are not available. Consider our related products like DC to DC Converter IC, Development Module, Inductor, Resistor, SMPS, and Analog IC. Contact Us.

Features of 74LS32 Quad 2-Input OR Gate DIP IC

• TTL-compatible inputs
• Low power consumption
• Compact DIP-14 package
• Four independent gates
• Operating temperature range of 0°C to +70°C

Specification of 74LS32 Quad 2-Input OR Gate DIP IC

• Gate IC Type: OR
• Model Name: 74LS32
• Case/Package: DIP 14
• Operating Temperature (°C): 0°C to +70°C
• Supply Current (A): 38 µA
• Supply Voltage: 4.75V to 5V

Applications of 74LS32 Quad 2-Input OR Gate DIP IC

• Digital Logic Control
• Signal Routing
• Arithmetic Circuits
• Data Selection
• Alarm Systems
• Timing Circuits

Related Links for 74LS32 Quad 2-Input OR Gate DIP IC

• Other Products from 7400 Series IC's Category

Package Includes

• 1 X 74LS32 Quad 2-Input OR Gate DIP IC
