Product Images are shown for illustrative purposes only and may differ from actual product.

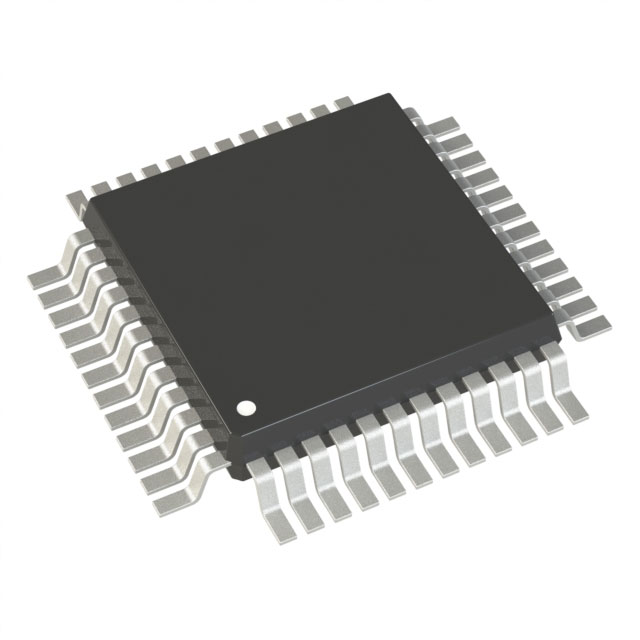

STM 8S003K3T6C MICROCONTROLLER SMD IC
- Stock: Out Of Stock
- SKU: 9365 | DAE447
-
Rs. 159.30 (inc GST)
Rs.135.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
STM 8S003K3T6C MICROCONTROLLER SMD IC
STM 8S003K3T6C MICROCONTROLLER SMD IC
The STM8S003K3T6C is an 8-bit microcontroller from STMicroelectronics, part of their STM8S Value Line series. At its core, the device features a 16 MHz STM8 CPU with a Harvard architecture and a three-stage pipeline, which enhances instruction throughput and execution speed. The microcontroller comes with 8 KB of Flash memory, offering 20-year data retention, 1 KB of RAM, and 128 bytes of EEPROM supporting up to 100,000 write/erase cycles.
DNA solutions, Nashik has various types of Microcontroller IC's. Check out our complete collection of Microcontroller IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of STM 8S003K3T6C MICROCONTROLLER SMD IC
- 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline.
- Program memory:8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
- Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization.
- Nested interrupt controller with 32 interrupts.
- Window and independent watchdog timers.
- Highly robust I/O design, immune against current injection.
Specifications of STM 8S003K3T6C MICROCONTROLLER SMD IC
- Product Category: 8-bit Microcontrollers - MCU
- Program Memory Size: 8 kB
- Data RAM Size: 1 kB
- Package/Case: LQFP-32
- Maximum Clock Frequency: 16 MHz
- ADC Resolution: 10 bit
- Number of I/Os: 28 I/O
- Supply Voltage-Min: 2.95 V
- Mounting Style: SMD/SMT
- Program Memory Type: Flash
Applications of STM 8S003K3T6C MICROCONTROLLER SMD IC
- Home Appliances
- Consumer Electronics
- Industrial Automation
- Power Management Systems
- IoT and Embedded Systems
Package Includes
1 x STM 8S003K3T6C MICROCONTROLLER SMD IC
