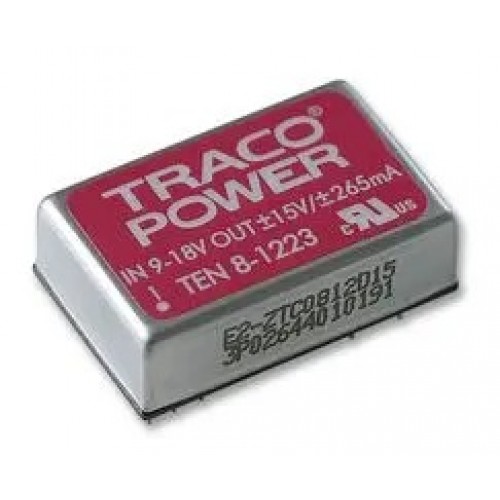

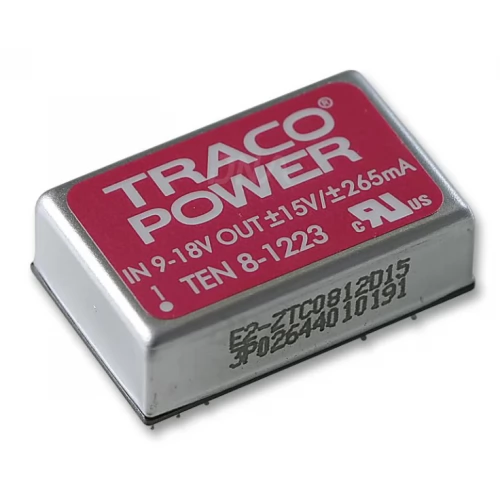

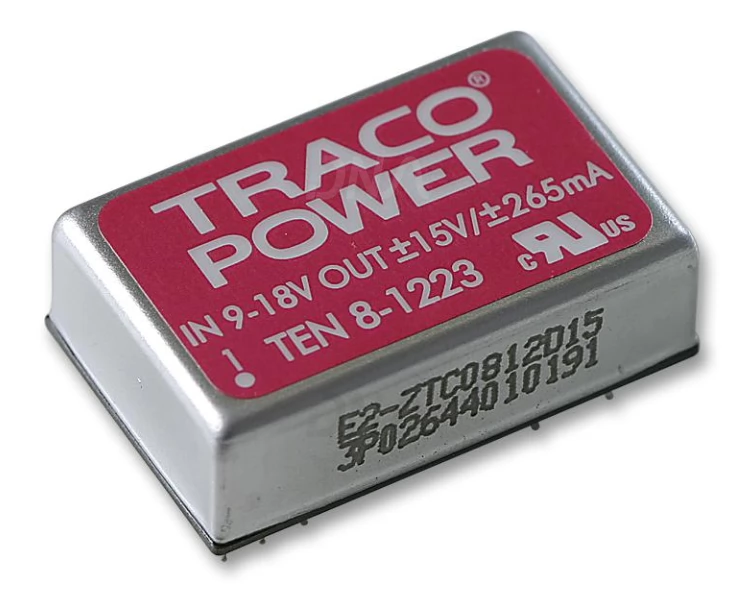

TRACO POWER TEN 8-1223 Isolated Dual-Output DC/DC Converter Module

Stock: Out Of Stock
Availability: NotInStock priceValidUntil: 2026-11-15
Brand: Traco Power
SKU: 7438 | DAF669

Rs. 7,080.00 (inc GST)
Rs.6,000.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

TRACO POWER TEN 8-1223 Isolated Dual-Output DC/DC Converter Module

TEN 8-1223 isolated dual-output DC/DC converter module with 9–18 VDC input, ±15 VDC outputs and 267 mA maximum current per output.

The TRACO POWER TEN 8-1223 is an isolated dual-output DC/DC converter module for systems that need separate positive and negative power rails. It accepts a 9–18 VDC input and provides regulated +15 VDC and -15 VDC outputs, each rated for up to 267 mA.

Its wide 2:1 input range supports input variation, while remote On/Off control lets the system manage converter operation. Continuous short-circuit protection with automatic recovery helps the module resume operation after a fault clears. A shielded metal case and insulated baseplate support PCB mounting.

Use this module in instrumentation and communication equipment, industrial electronics, and battery-operated equipment where isolated dual outputs are needed. Its DIP-24 through-hole footprint suits board-level power designs.

DNA stocks TRACO POWER modules for engineers and electronics buyers seeking DC to DC Converter Modules for their designs. Check other DC to DC Converter Modules that we have in stock

Indian electronics buyers can contact DNA if they cannot find a part. Ask us about import support and retail or bulk orders for Connectors, Sensors, Crystals, DC to DC Converter Modules, Power Supplies and Nextion Displays. Contact Us

Features of TRACO POWER TEN 8-1223 Isolated Dual-Output DC/DC Converter Module

Isolated dual-output conversion with regulated positive and negative rails
Remote On/Off control for system-level operation
Continuous short-circuit protection with automatic recovery
Internal Pi-type input filter
Shielded metal case with insulated baseplate

Specifications of TRACO POWER TEN 8-1223 Isolated Dual-Output DC/DC Converter Module

Input voltage range: 9–18 VDC (12 VDC nominal)
Output voltage: +15 VDC and -15 VDC
Maximum output current: 267 mA per output
Typical efficiency: 85%
Operating temperature: -40°C to +85°C (power derating at high temperature depends on model)
Isolation test voltage: 1600 VDC input-to-output, input-to-case and output-to-case for 60 seconds
Mounting and footprint: PCB-mount, through-hole, DIP-24
Maximum case temperature: +100°C

Applications of TRACO POWER TEN 8-1223 Isolated Dual-Output DC/DC Converter Module

Battery-operated equipment
Instrumentation
Communication equipment
Industrial electronics

Package Includes

1 X TRACO POWER TEN 8-1223 Isolated Dual-Output DC/DC Converter Module
