Product Images are shown for illustrative purposes only and may differ from actual product.

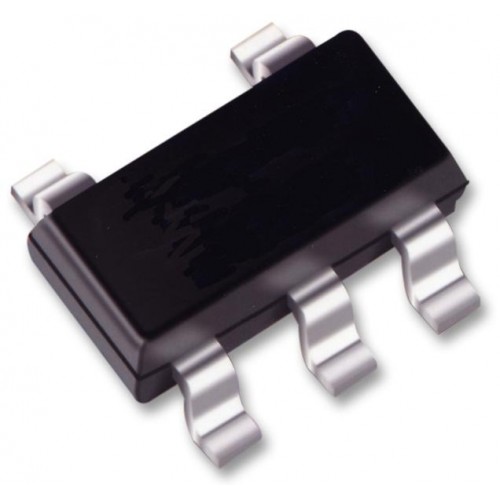

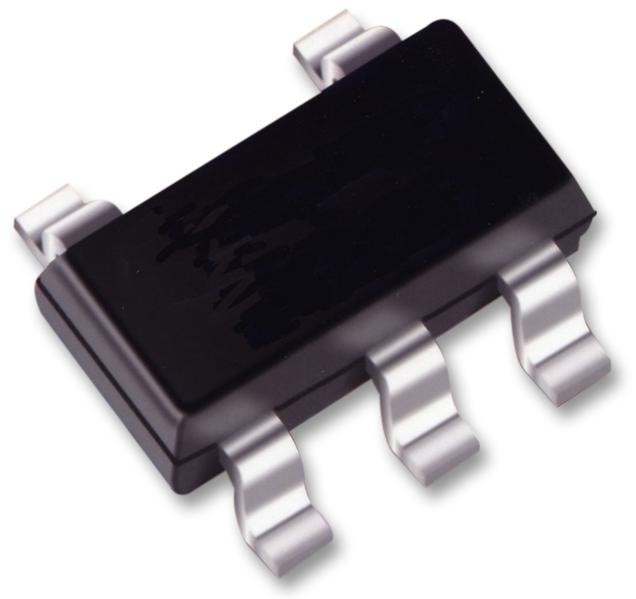

74LVC1G14GV Single Schmitt trigger Inverter IC


Write a review | 1 reviews

  • Stock: 73

    Availability: InStock priceValidUntil: 2026-09-07

  • SKU: 3776 | DAF743

Availability: InStock priceValidUntil: 2026-09-07

  • Rs. 17.70 (inc GST)
    Rs.15.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

74LVC1G14 SMD Schmitt Trigger Inverter IC

74LVC1G14GV Schmitt trigger inverter IC with high noise immunity and ±24mA output drive.

The 74LVC1G14 SMD Schmitt Trigger Inverter IC offers a reliable solution for inverting signals. It transforms slowly changing input signals into sharply defined outputs. This IC supports both 3.3V and 5V devices, making it versatile for mixed-voltage environments. The Schmitt-trigger input enhances tolerance for slow rise and fall times, ensuring stable operation.

Designed for efficiency, the 74LVC1G14 SMD Schmitt Trigger Inverter IC complies with JEDEC standards and incorporates advanced IOFF circuitry. This feature prevents backflow current during power-down scenarios, safeguarding your circuit. With a low power consumption profile and robust ESD protection, it is ideal for various applications.

Applications of the 74LVC1G14 SMD Schmitt Trigger Inverter IC include signal conditioning, level shifting, and interfacing with TTL levels. This device is a key component for engineers looking to enhance circuit performance in electronic designs. Explore its capabilities for your next project.

Explore the reliability of the 7400 Series IC's at DNA. We offer a range of products from trusted manufacturers. Check other '7400 Series IC's' that we have in stock.

If you are searching for specific electronic components, DNA can assist you. We can help import hard-to-find parts and support both retail and bulk purchases. Explore related items like Microcontrollers, Development Modules, and Sensors. Contact Us.

Features of 74LVC1G14 SMD Schmitt Trigger Inverter IC

  • High noise immunity
  • Complies with JEDEC standards
  • ±24mA output drive
  • CMOS low power consumption
  • ESD protection exceeding 2000V

Specification of 74LVC1G14 SMD Schmitt Trigger Inverter IC

  • Input voltage range: 3.3V to 5V
  • Output drive: ±24mA
  • Latch-up performance exceeds 250mA

Applications of 74LVC1G14 SMD Schmitt Trigger Inverter IC

  • Signal conditioning
  • Level shifting
  • Interfacing with TTL levels

Related Links for 74LVC1G14 SMD Schmitt Trigger Inverter IC

Package Includes

  • 1 X 74LVC1G14 SMD Schmitt Trigger Inverter IC
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
