ATMEGA32A

ATMEGA32A 8-Bit AVR Microcontroller

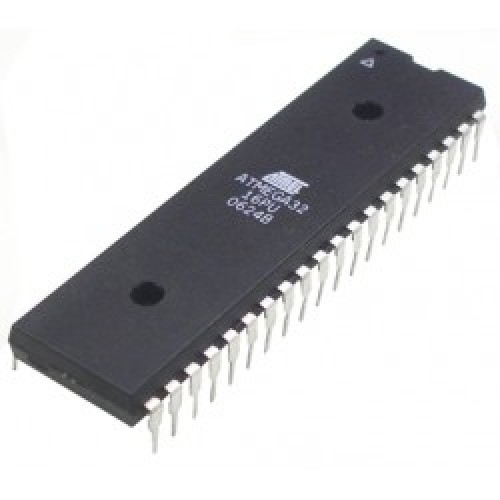

ATMEGA32A is a 40 pin, 8-bit AVR RISC-based microcontroller from Atmel. It is a low power, high performance microcontroller featuring 32KB self-programming flash program memory, 2KB SRAM, 1KB EEPROM, 8 channel 10-bit A/D converter and JTAG interface for on-chip-debug. The device acheives 16 MIPS throughput at 16 Mhz at 2.7-5.5V operation.

By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.

Features of ATMEGA32A Microcontroller

• High-performance, Low-power Atmel AVR 8-bit Microcontroller

• Advanced RISC Architecture

– 131 Powerful Instructions - Most Single-clock Cycle Execution

– 32 × 8 General Purpose Working Registers

– Fully Static Operation

– Up to 16MIPS Throughput at 16MHz

– On-chip 2-cycle Multiplier

• High Endurance Non-volatile Memory segments

– 32Kbytes of In-System Self-programmable Flash program

memory

– 1024Bytes EEPROM

– 2Kbytes Internal SRAM

– Write/Erase cycles: 10,000 Flash/100,000 EEPROM

– Data retention: 20 years at 85°C/100 years at 25°C(1)

– Optional Boot Code Section with Independent Lock Bits

• In-System Programming by On-chip Boot Program

• True Read-While-Write Operation

– Programming Lock for Software Security

• JTAG (IEEE std. 1149.1 Compliant) Interface

– Boundary-scan Capabilities According to the JTAG Standard

– Extensive On-chip Debug Support

– Programming of Flash, EEPROM, Fuses and Lock Bits through

the JTAG Interface

• Atmel QTouch® library support

– Capacitive touch buttons, sliders and wheels

– Atmel QTouch and QMatrix acquisition

– Up to 64 sense channels

• Peripheral Features

– Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes

– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode

– Real Time Counter with Separate Oscillator

– Four PWM Channels

– 8-channel, 10-bit ADC

• 8 Single-ended Channels

• 7 Differential Channels in TQFP Package Only

• 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x

– Byte-oriented Two-wire Serial Interface

– Programmable Serial USART

– Master/Slave SPI Serial Interface

– Programmable Watchdog Timer with On-chip Oscillator

– On-chip Analog Comparator

• Special Microcontroller Features

– Power-on Reset and Programmable Brown-out Detection

– Internal Calibrated RC Oscillator

– External and Internal Interrupt Sources

– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and

Extended Standby

• I/O and Packages

– 32 Programmable I/O Lines

– 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF

• Operating Voltages

– 2.7 - 5.5V

• Speed Grades

– 0 - 16MHz

• Power Consumption at 1MHz, 3V, 25°C

– Active: 0.6mA

– Idle Mode: 0.2mA

– Power-down Mode: < 1μA
