• HFD27/0012-S 12 Volt DPDT Telecom Relay

Product Images are shown for illustrative purposes only and may differ from actual product.

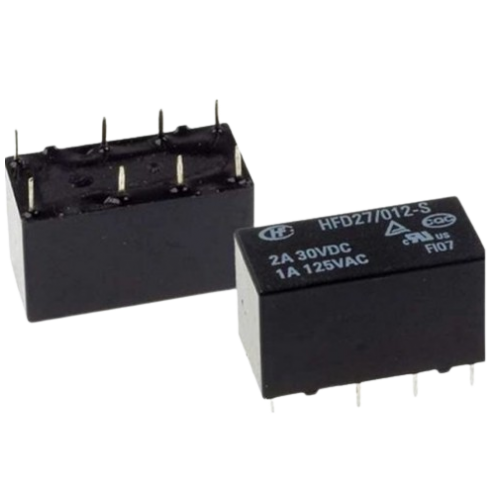

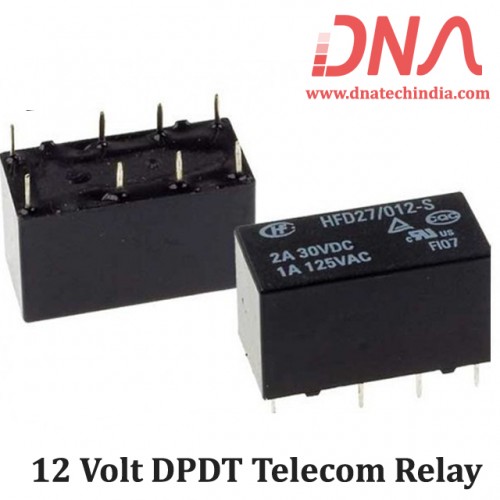

HFD27/0012-S 12 Volt DPDT Telecom Relay

  • Stock: 3
  • Brand: Hongfa
  • SKU: 2740 | DAE275
  • Rs. 50.15 (inc GST)
    Rs.42.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

12 Volt DPDT Subminiature DIP Telecom Relay

HFD27/0012-S 12 Volts DPDT PCB Mount Telecom Relay

HFD27/0012-S is a subminiature DIP relay which can be mounted on a 16 pin IC base. This is a Double Pole Double Throw (DPDT) type relay and is Epoxy Sealed so can be used with automatic wave soldering machines. The HFD27/0012-S relay has bifurcated contacts thus reduce contact bounce, increase reliability and assist in switching. Bifurcated contacts conduct the switching more efficiently.

We have Various types of Relay, Relay Socket and SSR. Check out our complete collection of Relay, Relay Socket and SSR.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specification of HFD27/0012-S 12 Volt DPDT Telecom Relay

  • Model Number : HFD27/0012-S
  • Type : Telecom Relay
  • Voltage : 12 VDC
  • Current : 2 Ampere
  • Number Of Poles : 2 Pole
  • Mounting Type : PCB Mounting

Features of HFD27/0012-S 12 Volt DPDT Telecom Relay

  • Contact Arrangement: 2 Form C
  • Contact Current Rating: 5 A
  • Max Switching Current (AC): 2 Ampere
  • Max Switching Voltage (VAC):240VAC
  • Max Switching Voltage (VAC): 240VAC
  • Max Switching Voltage (VDC): 120VDC
  • Coil power:Sensitive 200mW
  • Termination:PCB
  • Mounting:DIP
  • Construction:Plastic sealed
  • Contact capacity: AgNi+Au plated
  • Dielectric strength (between coil & contacts):2000VAC 1min
  • Contact plating: Au plated
  • Mechanical endurance: 100000000 operations

Application of HFD27/0012-S 12 Volt DPDT Telecom Relay

  • UPS Invertors
  • Air Conditoner,
  • Security Equipments
  • Household Appliances
  • Automotive Products
