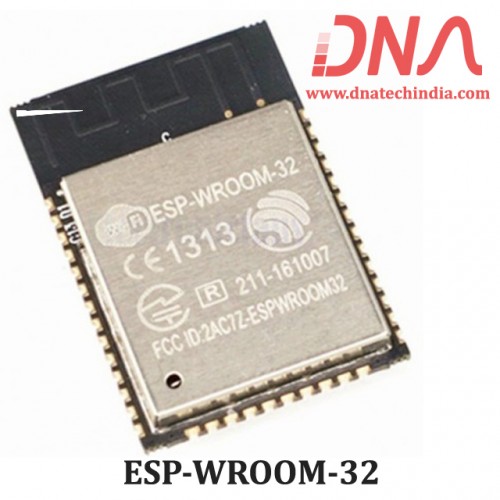

ESP-WROOM-32 WiFi & BLE Dual-Core MCU Module
The ESP32 WiFi and Bluetooth chip is the latest generation of Espressif products. It has a dual-core 32-bit MCU, which integrates WiFi HT40 and Bluetooth/BLE 4.2 technology inside.
Compared to the ESP8266 (the previous generation), the ESP-WROOM-32 has a significant performance improvement. It is equipped with a high-performance dual-core Tensilica LX6 MCU. One core handles high speed connection and the other for standalone application development. The dual-core MCU has a 240 MHz frequency and a computing power of 600 DMIPS. In addition, it supports Wi-Fi HT40, Classic Bluetooth/BLE 4.2, and more GPIO resources.
ESP32 chip integrates a wealth of hardware peripherals, including capacitive touch sensors, Hall sensors, low noise sensor amplifiers, SD card interfaces, Ethernet interfaces, high-speed SDIO / SPI, UART, I2S and I2C, etc. Engineered for mobile devices, wearable electronics and Internet of Things (IoT) applications, the ESP32 achieves ultra-low power consumption with a combination of several proprietary software applications. The state-of-the-art power saving features include fine resolution clock gating, power modes, and dynamic power scaling.
Specifications and Features of ESP-WROOM-32
CPU and Memory
Xtensa® Dual-Core 32-bit LX6 microprocessors, up to 600 DMIPS
448 KByte ROM
520 KByte SRAM
16 KByte SRAM in RTC
QSPI Flash/SRAM, up to 4 x 16 MBytes
Power supply: 2.2 V to 3.6 V
Clocks and Timers
Internal 8 MHz oscillator with calibration
Internal RC oscillator with calibration
External 2 MHz to 40 MHz crystal oscillator
External 32 kHz crystal oscillator for RTC with calibration
Two timer groups, including 2 x 64-bit timers and 1 x main watchdog in each group
RTC timer with sub-second accuracy
Advanced Peripheral Interfaces
12-bit SAR ADC up to 18 channels
2 × 8-bit D/A converters
10 × touch sensors
4 × SPI
2 × I2S
2 × I2C
3 × UART
1 host (SD/eMMC/SDIO)
1 slave (SDIO/SPI)
Ethernet MAC interface with dedicated DMA and IEEE 1588 support
LED PWM up to 16 channels
Ultra low power analog pre-amplifier
SDK Firmware for fast on-line programming
Open source toolchains based on GCC
