Product Images are shown for illustrative purposes only and may differ from actual product.
ESP32 WROOM 32U Chipset
- Stock: Out Of Stock
- SKU: 2811 | DAC621
-
Rs. 368.16 (inc GST)
Rs.312.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

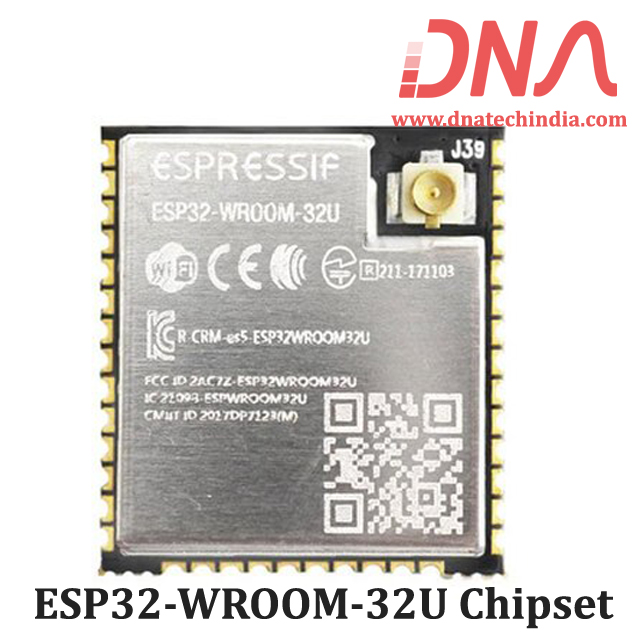

ESP32 WROOM 32U Chipset
ESP32-WROOM-32U is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
ESP32-WROOM-32U is a powerful, generic Wi-Fi+BT+BLE MCU module that targets a wide variety of applications, ranging from low-power sensor networks to the most demanding tasks, such as voice encoding, music streaming and MP3 decoding.
At the core of this ESP32 WROOM 32U module is the ESP32 D0WDQ6 chip*. The chip embedded is designed to be scalable and adaptive. There are two CPU cores that can be individually controlled, and the CPU clock frequency is adjustable from 80 MHz to 240 MHz. The chip also has a low-power co-processor that can be used instead of the CPU to save power while performing tasks that do not require much computing power, such as monitoring of peripherals. ESP32 wroom 32U integrates a rich set of peripherals, ranging from capacitive touch sensors, Hall sensors, SD card interface, Ethernet, high-speed SPI, UART, I²S and I²C.
We have various types of IoT modules and chipset. Check out our complete collection of IoT Modules & Chipset.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Specification of ESP32 WROOM 32U Chipset
- Antenna Type : Antenna Not Included, U.FL
- Data Rate : 150Mbps
- Frequency : 2.4GHz ~ 2.5GHz
- Memory Size : 448kB ROM, 536kB SRAM
- Modulation : CCK, DSSS, OFDM
- Mounting Type : Surface Mount
- Operating Temperature : -40°C ~ 85°C
- Package / Case : 38-SMD Module
- Power - Output : 20.5dBm
- Protocol : 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
- RF Family/Standard : Bluetooth, WiFi
- Sensitivity : -98dBm
- Serial Interfaces : GPIO, I²C, I²S, PWM, SDIO, SPI, UART
- Series : ESP32
- Utilized IC / Part : ESP32-D0WD
- Voltage - Supply : 2.7V ~ 3.6V
