NodeMCU LoLin V3 Base Board

  • Product Code: 1639
  • Availability: 5
  • Price :

    Rs.236.00 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

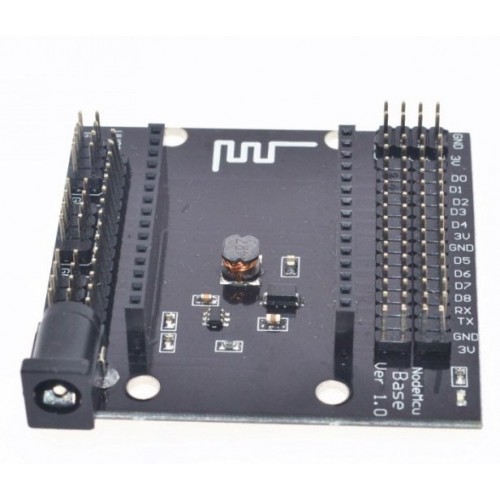

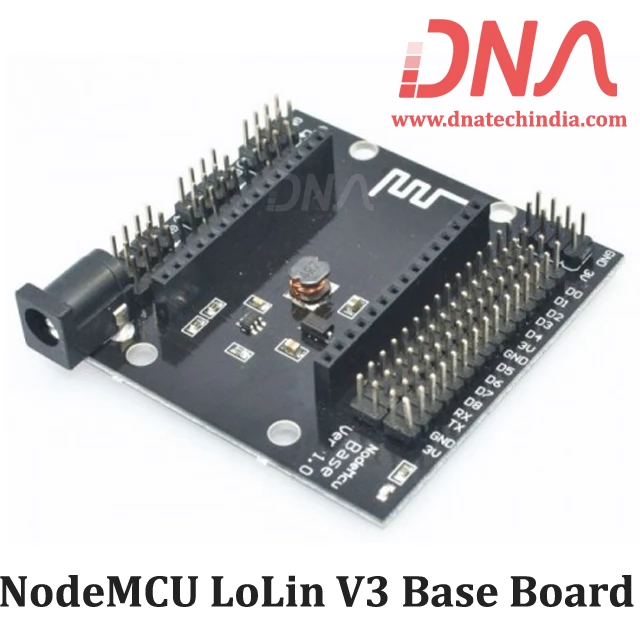

NodeMCU LoLin V3 Base Board

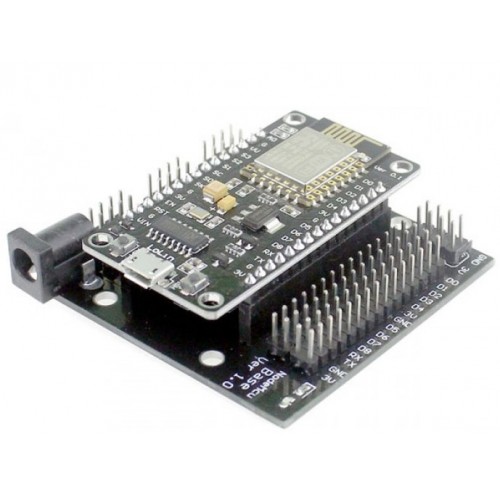

NodeMCU LoLin V3 Base Board for testing  and development ESP8266 / ESP12 WiFi Lua Modules.It is basically a base board for NODE MCU Module with onboard DC to DC converter module for providing 5 volts  to Node MCU and pinouts for all pins of NODE MCU.


Features

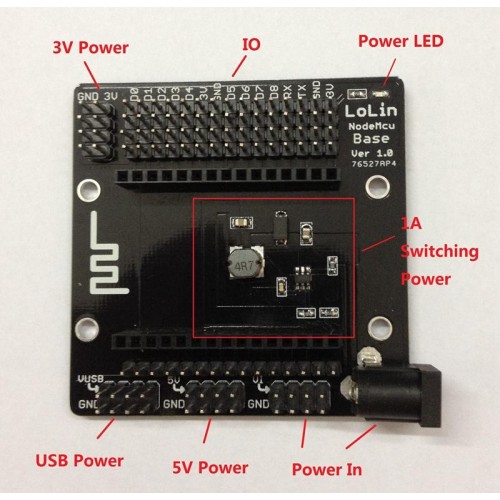

  • Barrel Input Connector for DC Voltage Input for AC/DC Adapters (6-24VDC)
  • All NodeMCU Lolin V3 pinouts are brought on headers
  • Multuple Header pins for ease of connectivity with other external devices
  • On-Board Switch-mode 5V regulator
  • Power Supply Headers for :
                VIN
               +5V
                3.3V
  • USB VCC / VUSB
  • Antenna Mark for Correct orientation of the NodeMCU module insertion
  • On board LED indicator
  • Technical Specifications
  • Input Voltage: 6V – 24V DC
  • PCB Thickness: 1.6mm
  • NodeMCU Pin Distance between sides: ~28.0mm
  • Pin Pitch: 2.54mm (0.1in)
  • Board Dimensions: 60.0mm x 60.0mm x 15.0mm (L x W x H)

Note

These base boards are made for NodeMCU V3 only. Due to dimensional differences between NodeMCU V2 and V3, these base board will not accept NodeMCU V2. i.e NODEMCU modules with ch340 IC's will be compatiblewith this base board. NODEMCU with cp2102 IC's are not compatible with this module.

Package Includes 1x NodeMcu Base ESP8266 Testing DIY Board For LoLin V3 NodeMcu Lua WIFI Development Board
