• PIC18F46K22-I/PT Microcontroller (TQFP Package)

Product Images are shown for illustrative purposes only and may differ from actual product.

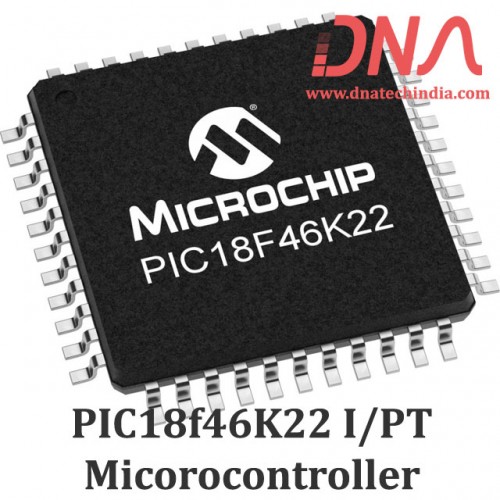

PIC18F46K22-I/PT Microcontroller (TQFP Package)

  • Stock: 65
  • Brand: Microchip
  • SKU: 3174 | DAE372
  • Rs. 566.40 (inc GST)
    Rs.480.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PIC18F46K22-I/PT Microcontroller

PIC18F46K22 LOW Power, High Performance Microcontroller from Microchip with 12-Bit A/D and XLP Technology

The PIC18f46K22 Microcontroller offers the advantages of all PIC18 microcontrollers – namely, high computational performance at an economical price – with the addition of high-endurance, Flash program memory. On top of these features, the PIC18(L)F2X/4XK22 family introduces design enhancements that make these PIC18F46K22 microcontroller a logical choice for many high performance, power sensitive applications.

PIC18f46K22 is Recommended for Automotive Design.


We have various types of Microcohip make Microcontrollers. Check our complete collection of PIC Microcontrollers.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PIC18F64K22 Microcontroller

  • C Compiler optimized architecture/instruction set
  • Data EEPROM to 1024 bytes
  • Linear program memory addressing to 64 Kbytes
  • Linear data memory addressing to 4 Kbytes
  • Up to 16 MIPS operation
  • 16-bit wide instructions, 8-bit wide data path
  • Priority levels for interrupts
  • 31-level, software accessible hardware stack
  • 8 x 8 Single-Cycle Hardware Multiplier
  • Sleep mode: 100 nA, typical
  • Watchdog Timer: 500 nA, typical
  • Timer1 Oscillator: 500 nA @ typical 32 kHz Flexible Oscillator Structure
  • Factory calibrated to ± 1%
  • Software selectable frequencies range of 31 kHz to 16 MHz
  • 64 MHz performance available using PLL
  • no external components required
  • Four Crystal modes up to 64 MHz
  • Two external Clock modes up to 64 MHz
  • 4X Phase Lock Loop (PLL)
  • Secondary oscillator using Timer1 @ 32 kHz
  • Allows for safe shutdown if peripheral clock stops
  • Two-Speed Oscillator Start-up
  • Full 5.5V operation (PIC18F2XK22/4XK22)
  • Low voltage option available for 1.8V-3.6V operation (PIC18LF2XK22/4XK22)
  • Self-reprogrammable under software control
  • Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
  • Programmable Brown-out Reset (BOR)
  • Extended Watchdog Timer (WDT) with on-chip oscillator and software enable
  • Programmable code protection
  • In-Circuit Serial Programming™ (ICSP™) via two pins
  • In-Circuit Debug via two pins
  • 10-bit resolution
  • 17 analog input channels (PIC18F/LF2XK22)
  • 28 analog input channels (PIC18F/LF4XK22)
  • Auto acquisition capability
  • Conversion available during Sleep
  • Programmable High/Low Voltage Detection (PLVD) module
  • Up to 28 channels for button, sensor or slider input
  • Two rail-to-rail analog comparators
  • Comparator inputs and outputs externally accessible and configurable
  • Programmable On-chip Voltage Reference (CVREF) module (% of VDD)
  • Selectable on-chip fixed voltage reference
  • High current sink/source 25 mA/25 mA
  • Individually programmable weak pull-ups
  • Individually programmable interrupt-on-pin change
  • Three external interrupt pins
  • Up to four 16-bit timers/counters with prescaler
  • Up to three 8-bit timers/counters
  • Dedicated, low-power Timer1 oscillator
  • Up to two Capture/Compare/PWM (CCP) modules
  • One, two or four PWM outputs
  • Selectable polarity
  • Programmable dead time
  • Auto-shutdown and Auto-restart
  • PWM output steering control
  • 3-wire SPI (supports all 4 SPI modes)
  • I2C™ Master and Slave modes (Slave mode with address masking)
  • Supports RS-232, RS-485 and LIN 2.0
  • Auto-Baud Detect
  • Auto Wake-up on Start bit

Specifications of PIC18F46K22 Microcontroller

  • Max ADC Resolution (bits): 10
  • Number of ADCs: 1
  • Program Memory Size (KB): 64
  • Capture/Compare/PWM (CCP): 2
  • Number of Comparators: 2
  • CPU Speed (MIPS/DMIPS): 16
  • Data EEPROM (bytes): 1024
  • DigitalTimerQty_16bit: 4
  • Max 8 Bit Digital Timers: 3
  • Enhanced Capture/Compare/PWM (ECCP): 3
  • Ethernet: None
  • I2C: 2
  • Program Memory Type: Flash
  • MSSP: 2
  • ADC Channels: 28
  • Low Power: Yes
  • Operating Voltage: 1.8 - 5.5
  • Pin Count: 64
  • SPI: 2
  • Temp Range(°C): -40 - 125
  • USART: 2

Related Link

Package Includes

1 x PIC18F46K22-I/PT Microcontroller (TQFP Package)

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited

Reviews (0)
