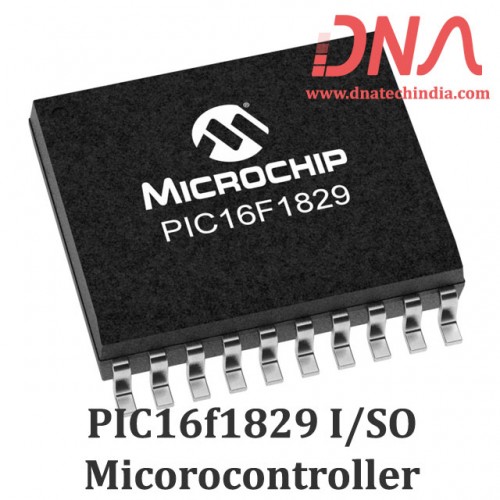

PIC16F1829-I/SO Microcontroller

PIC16F1829 8-Bit CMOS Flash Microcontroller from Microchip with Nanowatt Technology

PIC16f1829 is a versatile MCU and is also a member of Microchip's extreme low power microcontroller family featuring nanoWatt XLP technology.

PIC16f1829 microcontroller contain an enhanced mid-range 8-bit CPU core. The CPU has 49 instructions. Interrupt capability includes automatic context saving. The hardware stack is 16 levels deep and has Overflow and Underflow Reset capability. Direct, indirect, and relative addressing modes are available.

PIC16f1829 is Recommended for Automotive Design.

Features of PIC16F1829 Microcontroller

• Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels
• Flash Program Memory with self read/write capability
• Internal 32MHz oscillator
• Integrated Capacitive mTouch Sensing Module
• Data Signal Modulator for generation of custom bit streams
• CVREF can be used as 5-bit DAC
• MI2C, SPI, EUSART w/auto baud
• 2 ECCP & 2 CCP (Enhanced/Capture Compare PWM)
• Comparators with selectable Voltage Reference
• 12 Channel 10b ADC with Voltage Reference
• 25mA Source/Sink current I/O
• Four 8-bit Timers (TMR0/TMR2/TMR4/TMR6)
• One 16-bit Timer (TMR1)
• Extended Watchdog Timer (EWDT)
• Enhanced Power-On/Off-Reset
• Brown-Out Reset (BOR)
• In Circuit Serial Programming (ICSP)
• On Board In-Circuit Debug
• Wide Operating Voltage (1.8V – 5.5V)
• Low Power PIC16LF182x variants (1.8V – 3.6V)
• Standby Current (PIC16LF182X): 30 nA @ 1.8V, typical

Specifications of PIC16F1829 Microcontroller

• Max ADC Resolution (bits): 10

• Number of ADCs: 1
• Program Memory Size (KB): 14
• Capture/Compare/PWM (CCP): 2
• Number of Comparators: 2
• CPU Speed (MIPS/DMIPS): 8
• Data EEPROM (bytes): 256
• DigitalTimerQty_16bit: 1
• Max 8 Bit Digital Timers: 4
• Ethernet: None

• I2C: 1
• Program Memory Type: Flash
• MSSP: 1
• ADC Channels: 12

• Low Power: Yes
• Operating Voltage: 1.8 - 5.5
• Pin Count: 20
• SPI: 2
• Temp Range(°C): -40 - 125
• USART: 1

Related Link

• PIC16F1829-I/SO Datasheet

Package Includes

1 x PIC16F1829-I/SO Microcontroller (SMDPackage)
