Product Images are shown for illustrative purposes only and may differ from actual product.

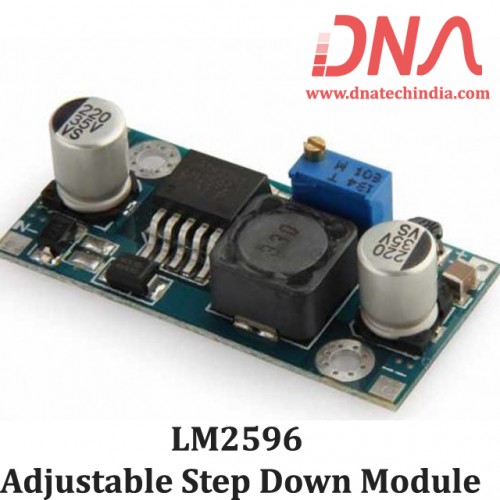

LM2596 Adjustable Step Down Module

  • Stock: 700
  • SKU: 0467 | DAB378
  • Rs. 48.38 (inc GST)
    Rs.41.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

LM2596 Adujustable Step Down Power Module

DC to DC Buck Converter 3.2 volt to 40 Volt

This is a LM2596 based Adjustable DC to DC Buck converter module. This is a non isolated step down module with adjustable output of 1.5 volt to 35 volt and rated current of 2 Ampere. The maximum current can go up-to 3 ampere if heat sink and proper cooling technique is used.

We have Various sizes of DC to DC Converter Modules. Check out our complete collection of DC to DC Converter Modules.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of LM2596 DC to DC Buck Convertor

  • Non-isolated step-down module
  • Mode of rectification: non-synchronous rectification
  • Input voltage: 4V-35V
  • Output voltage: 1.25-30V
  • Output Maximum current: 3 Ampere
  • Size: 53mm * 26mm approx (just for rough idea, vary depending on the manufacturer)

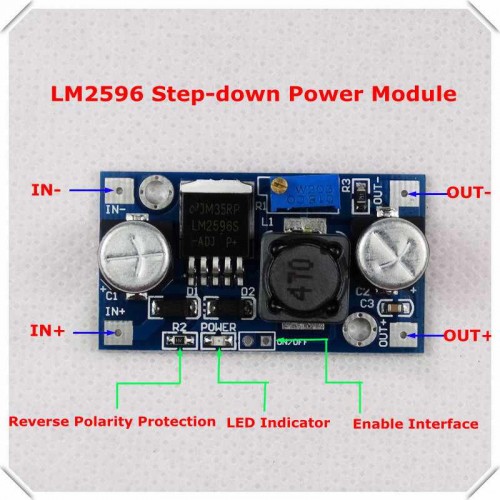

  • Input mode: IN+ input positive IN- input negative
  • Output mode: OUT+ output positive OUT- output negative

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
