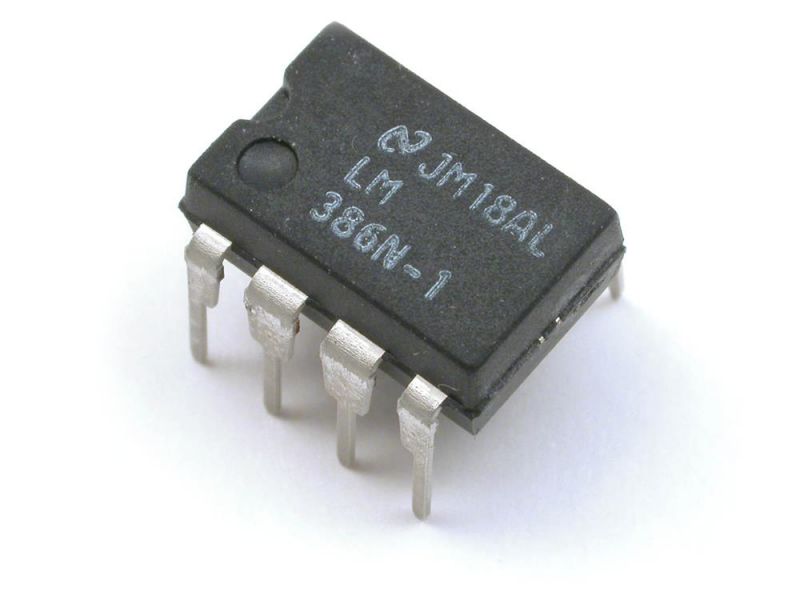

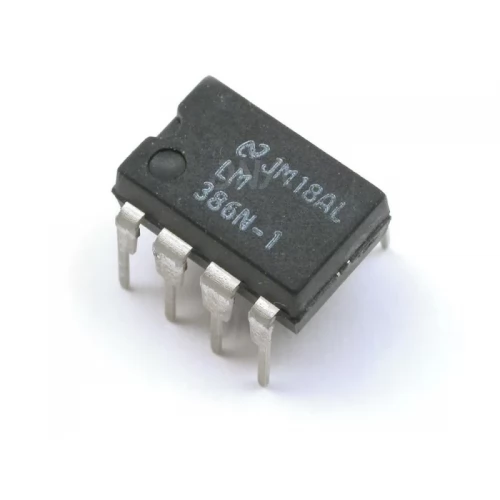

LM386 Audio Power Amplifier

LM386 Audio Power Amplifier

LM386 Amplifier + Low Voltage Operation + Gain of 20 to 200 + Ideal for Battery Use

The LM386 Audio Power Amplifier is designed for low voltage consumer applications. With a gain internally set to 20, it can be increased to 200 using external components. This product operates on a supply voltage range of 4V to 12V, making it versatile for various devices. Its low quiescent current of only 24 mA ensures long battery life, ideal for portable projects.

Incorporating the LM386 Audio Power Amplifier in your designs can enhance sound quality without complex circuitry. Its ground-referenced input and self-centering output voltage contribute to stable performance. This amplifier suits applications like AM-FM radios, intercoms, and TV sound systems, delivering reliable audio output.

Use the LM386 Audio Power Amplifier for projects requiring minimal external parts and efficient power consumption. Its compact design makes it suitable for small devices such as ultrasonic drivers and portable tape players. Explore how this amplifier can elevate your audio projects.

Explore the Audio, Sound and Voice Module category at DNA, featuring the reliable LM386 from a trusted manufacturer. Enhance your audio projects with quality components. Check other Audio, Sound and Voice Module that we have in stock.

At DNA, we cater to all your electronic needs. If you can't find certain parts, we can help. We import and support retail as well as bulk orders. Consider related items like Humidity & Temperature Sensors, Nextion Displays, Capacitors, SMPS, Connectors, and MOSFETs. Contact Us.

Features of LM386 Audio Power Amplifier

• Battery operation
• Minimum external parts
• Wide supply voltage range 4V–12V or 5V–18V
• Low quiescent current drain 4 mA
• Voltage gains from 20 to 200
• Ground referenced input
• Self-centering output quiescent voltage
• Low distortion
• Eight pin dual-in-line package

Specification of LM386 Audio Power Amplifier

• Gain: 20 to 200
• Supply Voltage: 4V–12V or 5V–18V
• Quiescent Power Drain: 24 mW
• Current Drain: 4 mA
• Package Type: 8-DIP

Applications of LM386 Audio Power Amplifier

• AM-FM radio amplifiers
• Portable tape player amplifiers
• Intercoms
• TV sound systems
• Ultrasonic drivers
• Small servo drivers
• Power converters

Related Links for LM386 Audio Power Amplifier

• Other Products from Audio, Sound and Voice Module Category

Package Includes

• 1 X LM386 Audio Power Amplifier
