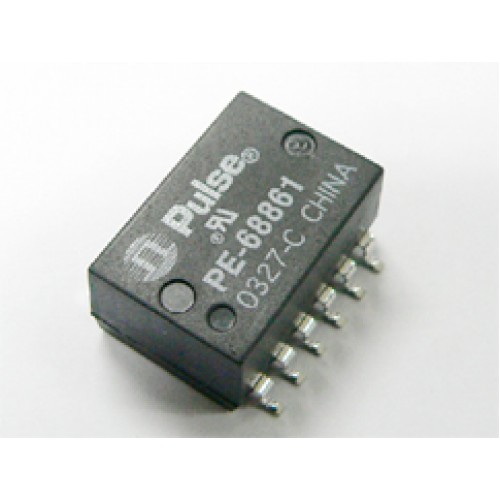

Product Images are shown for illustrative purposes only and may differ from actual product.

PE68861 Pulse Transformer

Write a review | 0 reviews

Stock: 2
Availability: InStock priceValidUntil: 2026-12-05
SKU: 884 | DAB572

Rs. 105.02 (inc GST)
Rs.89.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

PE68861 Dual Pulse Transformer

PE68861 Pulse Transformer for T1/CEPT/ISDN-Pri with 1500Vrms isolation and dual channel support.

The PE68861 Dual Pulse Transformer is ideal for T1/CEPT/ISDN-Pri applications. This module features a dual SMT package that includes both transmit and receive transformers, ensuring efficient data transmission. With an isolation voltage of 1500Vrms, it provides reliable performance in various environments.

Operating within a temperature range of 0°C to +70°C, the PE68861 Dual Pulse Transformer is designed for durability and stability. The primary and secondary impedances are 0.7 Ohms and 1.2 Ohms, respectively, making it suitable for high-speed data applications. This module is UL recognized, ensuring compliance with safety standards.

For Indian customers seeking a dependable solution for their communication needs, the PE68861 Dual Pulse Transformer delivers quality and performance. Explore the reliability of this transformer in your electronic projects, and enhance your system's efficiency today.

Explore the reliability of Pulse products at DNA. Our range of Misc Modules includes top-quality components. Check other "Misc Modules" that we have in stock.

If you are looking for specific electronic components, reach out to us. We can import parts not available and support both retail and bulk orders. Check out related items like Development Modules, Inductors, SMPS, and more. Contact Us

Features of PE68861 Dual Pulse Transformer

Dual SMT package
Isolation voltage: 1500Vrms
Operating temperature range: 0°C to +70°C
UL recognized
Unshielded design

Specification of PE68861 Dual Pulse Transformer

Primary Impedance: 0.7 Ohms
Secondary Impedance: 1.2 Ohms
Number of Channels: Dual
Length: 17.15 mm
Width: 11.58 mm
Height: 8.64 mm

Applications of PE68861 Dual Pulse Transformer

T1 communication
CEPT applications
ISDN-Pri systems
Data transmission
Electronic communication devices

Package Includes

1 X PE68861 Dual Pulse Transformer

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
