Product Images are shown for illustrative purposes only and may differ from actual product.

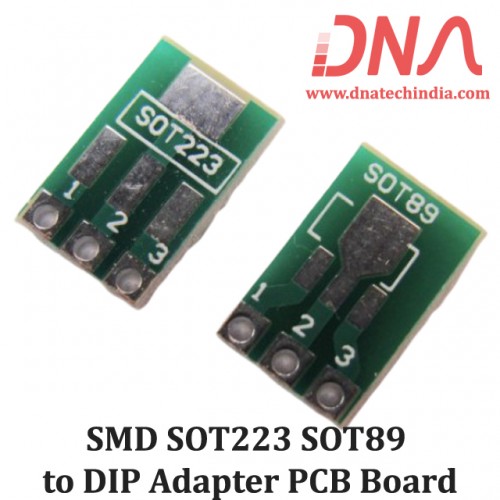

SMD SOT223 SOT89 to DIP Adapter PCB Board

Write a review | 0 reviews

Stock: 50
Availability: InStock priceValidUntil: 2026-11-27
SKU: 1536 | DAB699

Rs. 11.80 (inc GST)
Rs.10.00 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

SOT223 SOT89 to DIP Adapter PCB Board

SOT89 SOT223 adapter plate with 3-pin conversion for SMD packages to SIP3 standard.

The SOT223 SOT89 to DIP Adapter PCB Board is essential for converting SMD packages to a standard SIP3 format. This board features a compact size of approximately 8mm x 12mm and supports both SOT223 and SOT89 packages. It allows for easy integration into your electronic projects, ensuring reliable connections with its durable FR4 material and a thickness of 1.6mm. With a pitch of 1.5mm and 2.3mm, this adapter provides versatility for various applications.

Designed for efficiency, the SOT223 SOT89 to DIP Adapter PCB Board simplifies the process of connecting SMD components to through-hole designs. The board's 3-pin configuration ensures a secure fit, making it suitable for hobbyists and professionals alike. Whether you're working on a prototype or a finished product, this adapter is a valuable addition to your toolkit.

Explore the ease of use and functionality with the SOT223 SOT89 to DIP Adapter PCB Board. It is ideal for electronic projects requiring SMD to DIP conversions, providing a seamless transition for your components. Enhance your designs today with this practical solution that caters to various electronic needs.

Explore our wide range of PCB products at DNA. The SOT223 SOT89 to DIP Adapter PCB Board is an excellent choice for your electronic projects. Check other 'PCB' that we have in stock.

If you need specific electronic components, reach out to us. We can import parts that are not available and support both retail and bulk purchases. Consider related items like IGBT, Power Supply, Transistor, Resistor, Analog IC, DC to DC Converter IC. Contact Us.

Features of SOT223 SOT89 to DIP Adapter PCB Board

Converts SMD to SIP3
Compact size of 8mm x 12mm
Made of durable FR4 material
Supports SOT223 and SOT89 packages
1.6mm thickness

Specification of SOT223 SOT89 to DIP Adapter PCB Board

Pitch: 1.5mm / 2.3mm
Size: ~8mm x ~12mm
PCB Thickness: 1.6mm
SMD Top: 3-pin SOT223
SMD Bottom: 3-pin SOT89

Applications of SOT223 SOT89 to DIP Adapter PCB Board

SMD to DIP conversion
Prototyping electronic circuits
Hobby electronics
PCB design
Educational projects

Package Includes

1 X SOT223 SOT89 to DIP Adapter PCB Board

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
