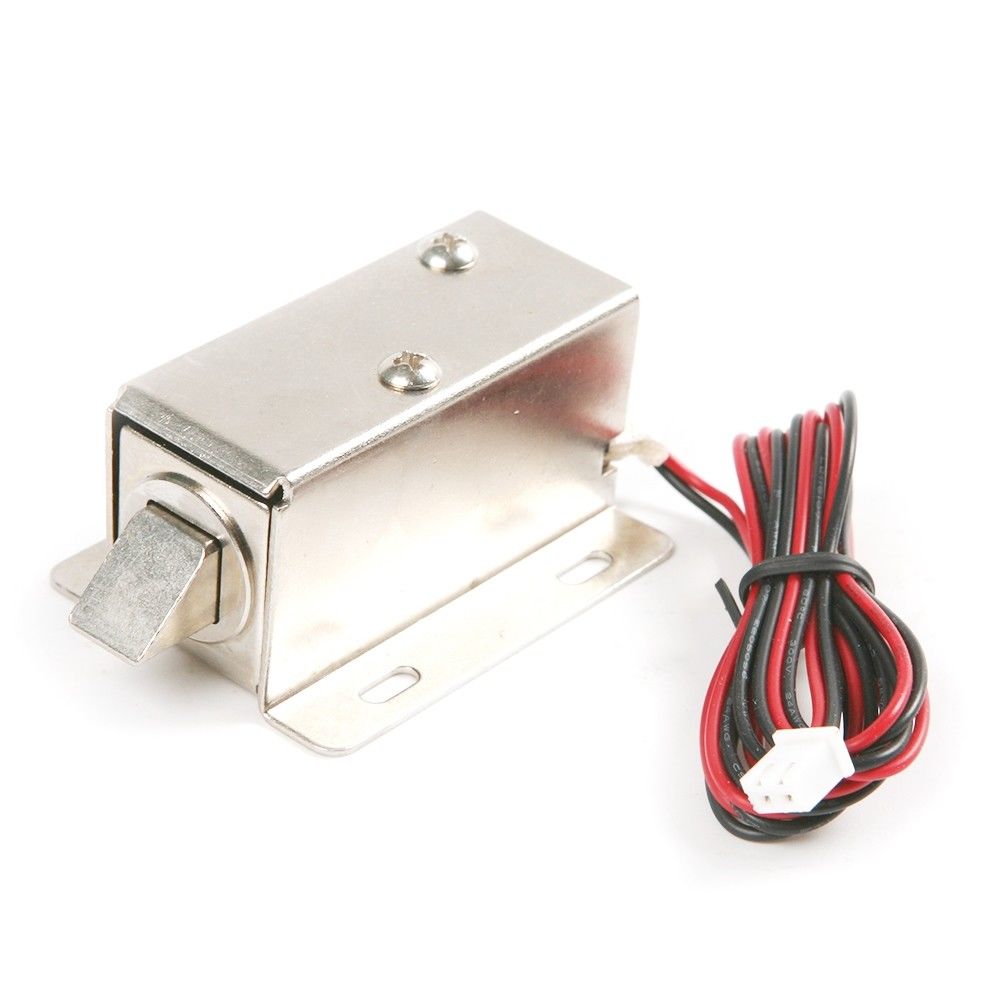

12V DC Electric Solenoid Lock


Write a review | 2 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-03-23

  • SKU: 1574 | DAC401

Availability: InStock priceValidUntil: 2026-03-23

  • Rs. 339.13 (inc GST)
    Rs.287.40 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

12 Volt DC Electric Solenoid Latch

Want to lock door, drawer or any other moving part then this solenoid lock is perfect for you.

You can interface this electromagnetic lock to any Micro-controller, Arduino or even raspberry pi using a simple relay if you want you can directly use a one channel relay driver module.
Solenoids are basically electromagnets: they are made of a big coil of copper wire with an armature (a slug of metal) in the middle. When the coil is energized, the slug is pulled into the center of the coil. This makes the solenoid able to pull from one end.
This solenoid in particular is nice and strong, and has a slug with a slanted cut and a good mounting bracket. It's basically an electronic lock, designed for a basic cabinet or safe or door. Normally the lock is active so you can't open the door because the solenoid slug is in the way. It does not use any power in this state. When 9-12 Volt DC is applied, the slug pulls in so it doesn't stick out anymore and the door can be opened.

Features

  • High quality ultra-compact electric lock.
  • Rustproof, durable, safe, convenient to use.
  • Suction which tightly sucks the iron, thus locking the door.
  • Applicable for being installed in the escape door or fire door electronic controlled system.
  • Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

Specifications

  • Body Material : Iron
  • Item color : Golden tone
  • Rated voltage : DC 12V.
  • Rated current : 0.80A.
  • Power : 9.6 Watt
  • Holding force : 0.25kg
  • Energized forms : intermittent
  • Unlocking time : 1S
  • Weight : 150 gm
  • Dimensions : 54 x 42 x 28 mm (LxWxH)
  • Cable length : 20 cm

Package Includes

  • 1 x DC 12 Volt Cabinet Door Lock Electric Lock Assembly Solenoid
