ATmega32U4 Microcontroller
- Stock: 5 InStock
- SKU: 1295 | DAB686
-
Rs.
466.10 (inc GST)
Rs.395.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |

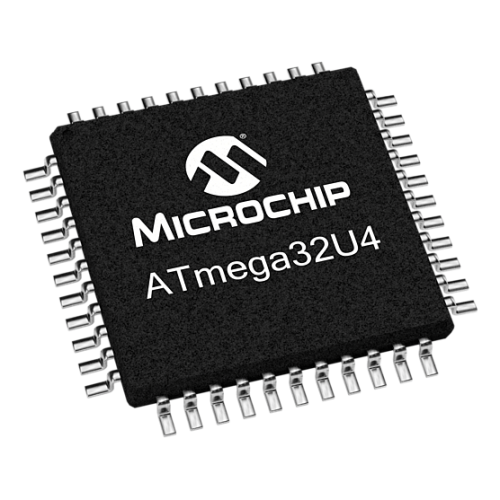

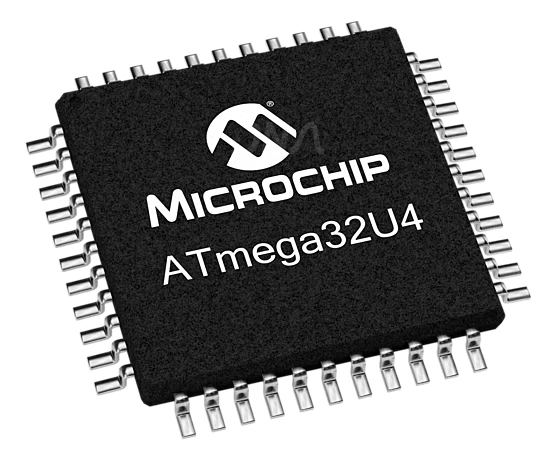

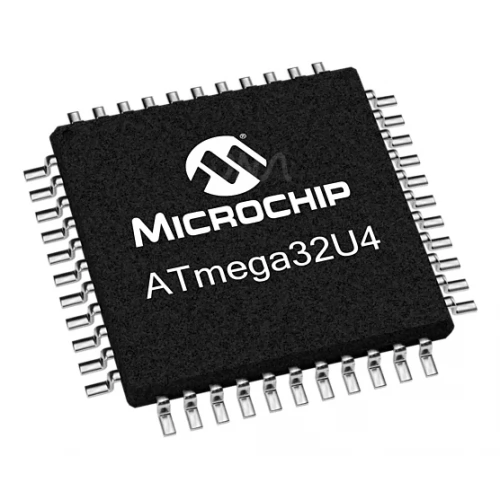

ATmega32U4 Microcontroller
Atmega32U4 is the Micro-controller that is used in Arduino Leonardo and Arduino Pro.
This low-power Microchip 8-bit AVR RISC-based micro-controller featuring 32KB self-programming flash program memory, 2.5KB SRAM, 1KB EEPROM, USB 2.0 full-speed/low speed device, 12-channel 10-bit A/D-converter, and JTAG interface for on-chip-debug. The device achieves up to 16 MIPS throughput at 16 MHz. 2.7 - 5.5 Volt operation.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.
By executing powerful instructions in a single clock cycle, the device achieves throughputs approaching 1 MIPS per MHz, allowing you to optimize power consumption versus processing speed.
Features of ATmega32U4
- USB 2.0 Full-speed/Low Speed Device Module with Interrupt on Transfer Completion
- Complies fully with Universal Serial Bus Specification Rev 2.0
- Supports data transfer rates up to 12Mbit/s and 1.5Mbit/s
- Endpoint 0 for Control Transfers : up to 64-bytes
- Six Programmable Endpoints with IN or Out Directions and with Bulk, Interrupt or Isochronous Transfers
- Configurable Endpoints size up to 256 bytes in double bank mode
- Fully independent 832 bytes USB DPRAM for endpoint memory allocation
- Suspend/Resume Interrupts
- CPU Reset possible on USB Bus Reset detection
- 48MHz from PLL for Full-speed Bus Operation
- USB Bus Connection/Disconnection on Microcontroller Request
- Crystal-less operation for Low Speed mode
- Program Memory Type : Flash
- Program Memory (KB) : 32
- CPU Speed (MIPS) : 16
- RAM Bytes : 2,560
- Data EEPROM (bytes) : 1024
- Digital Communication Peripherals : 1-UART, 2-SPI, 1-I2C
- Capture/Compare/PWM Peripherals : 2 Input Capture, 2 CCP, 12PWM
- Timers : 2 x 8-bit, 2 x 16-bit
- Comparators : 1
- USB (ch, speed, compliance) : 1, None
- Temperature Range (C) : -40 to 85
- Operating Voltage Range (V) : 2.7 to 5.5
- Pin Count : 44
- Cap Touch Channels : 14
- USB 2.0 Full-speed/Low Speed Device Module with Interrupt on Transfer Completion
- Complies fully with Universal Serial Bus Specification Rev 2.0
- Supports data transfer rates up to 12Mbit/s and 1.5Mbit/s
- Endpoint 0 for Control Transfers : up to 64-bytes
- Six Programmable Endpoints with IN or Out Directions and with Bulk, Interrupt or Isochronous Transfers
- Configurable Endpoints size up to 256 bytes in double bank mode
- Fully independent 832 bytes USB DPRAM for endpoint memory allocation
- Suspend/Resume Interrupts
- CPU Reset possible on USB Bus Reset detection
- 48MHz from PLL for Full-speed Bus Operation
- USB Bus Connection/Disconnection on Microcontroller Request
- Crystal-less operation for Low Speed mode
- Program Memory Type : Flash
- Program Memory (KB) : 32
- CPU Speed (MIPS) : 16
- RAM Bytes : 2,560
- Data EEPROM (bytes) : 1024
- Digital Communication Peripherals : 1-UART, 2-SPI, 1-I2C
- Capture/Compare/PWM Peripherals : 2 Input Capture, 2 CCP, 12PWM
- Timers : 2 x 8-bit, 2 x 16-bit
- Comparators : 1
- USB (ch, speed, compliance) : 1, None
- Temperature Range (C) : -40 to 85
- Operating Voltage Range (V) : 2.7 to 5.5
- Pin Count : 44
- Cap Touch Channels : 14
