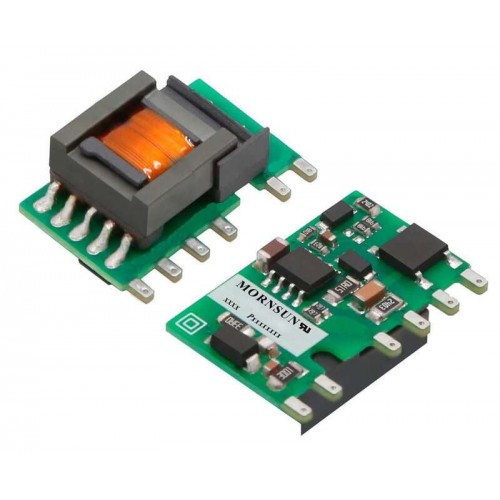

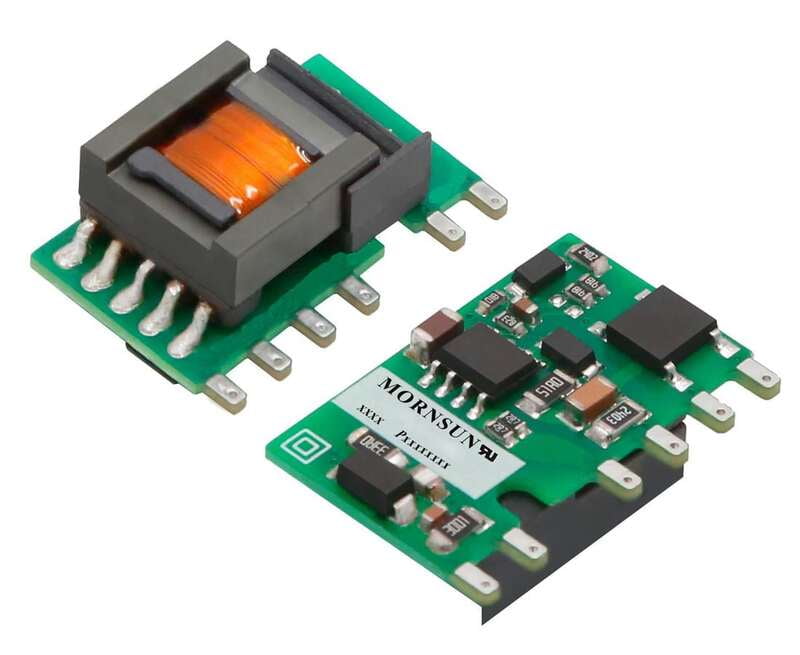

Mornsun LS03-13B24R3 3W AC/DC Power Converter Module

  • Stock: 1

    Availability: InStock priceValidUntil: 2026-12-17

  • Brand: Mornsun
  • SKU: 7725 | DAH587

Availability: InStock priceValidUntil: 2026-12-17

  • Rs. 191.16 (inc GST)
    Rs.162.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Mornsun LS03-13B24R3 3W AC/DC Power Converter Module

Mornsun LS03-13B24R3 AC/DC converter module with 24 V, 125 mA output, 3 W power and wide AC or DC input range.

The Mornsun LS03-13B24R3 is an open-frame 24 V AC/DC converter module rated for 3 W output. It converts AC or DC input to a 24 V DC supply for compact electronic designs.
The module accepts AC or DC through the same input terminals. Its short-circuit protection and over-current protection recover without manual reset. Stable output at very light load can help designs that spend time in standby. Typical efficiency is 80% at 230 VAC.
Use this wide-input AC/DC power module in industrial control, electric power equipment, instrumentation and smart home products. Its small open-frame form suits designs that need an integrated power conversion stage.
DNA supplies Mornsun power modules for Indian electronics projects. Explore Mornsun SMPS for AC/DC conversion needs and review available options for your design. Check other Mornsun SMPS that we have in stock
If you cannot find a part, contact DNA. We support imports and retail or bulk orders for Indian electronics buyers. Ask us about related DC to DC Converter Module, Analog IC, MOSFET or Power Supply options. Contact Us

Features of Mornsun LS03-13B24R3 3W AC/DC Power Converter Module

  • Accepts AC or DC through the same input terminals
  • Short-circuit protection uses a self-recovering hiccup mode
  • Self-recovering over-current protection
  • Maintains stable output from no load to light load

Specifications of Mornsun LS03-13B24R3 3W AC/DC Power Converter Module

  • Output voltage: 24 V DC nominal
  • Rated output current: 125 mA
  • Output power: 3 W
  • AC input voltage: 85–305 VAC, with power derating at 85–100 VAC and 277–305 VAC
  • DC input voltage: 70–430 VDC, with power derating at 70–120 VDC and 390–430 VDC
  • Input-output isolation: 3000 VAC for a 1-minute electric strength test
  • Operating temperature: −40°C to +85°C, with power derating above +65°C
  • Dimensions: 26.40 × 12.58 × 11.00 mm

Applications of Mornsun LS03-13B24R3 3W AC/DC Power Converter Module

  • Industrial control
  • Electric power equipment
  • Instrumentation
  • Smart home

Related Links for Mornsun LS03-13B24R3 3W AC/DC Power Converter Module

Package Includes

  • 1 X Mornsun LS03-13B24R3 3W AC/DC Power Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
