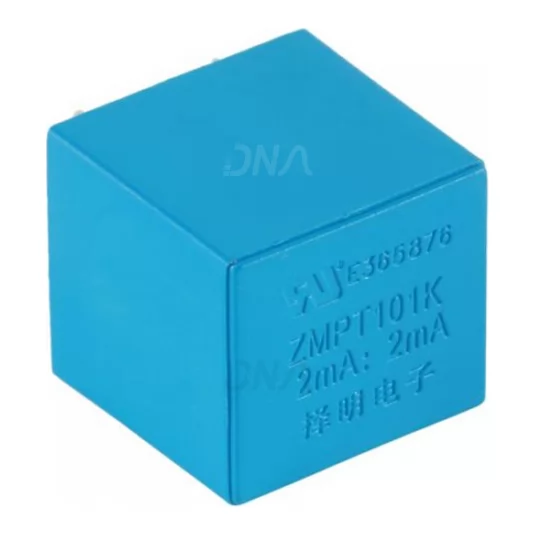

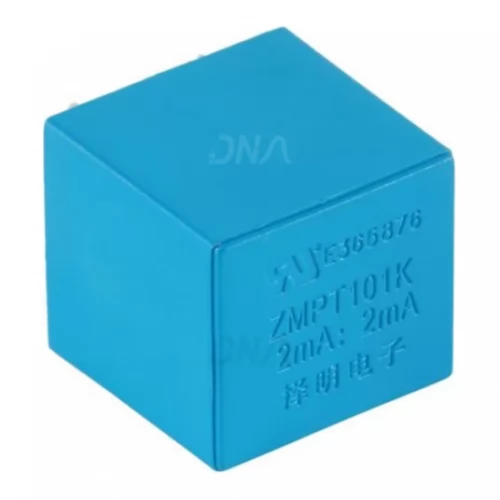

ZMPT101K Precision Phase Voltage Transformer

Write a review | 4 reviews

Stock: 10
Availability: InStock priceValidUntil: 2026-11-27
Brand: Zeming
SKU: 2572 | DAE008

Rs. 87.62 (inc GST)
Rs.74.25 + GST
Qty : Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ZMPT101K Mini Voltage Transformer

ZMPT101K 2mA Voltage Transformer with 1:1 turn ratio, UL certified, ideal for UPS applications.

The ZMPT101K Mini Voltage Transformer offers high accuracy and consistency for voltage and power measurement. With a 1:1 turn ratio, it operates efficiently under a primary current of 2 mA and maximum current of 8 mA. This transformer is UL certified, ensuring safety and reliability in various applications, especially in UPS systems. Its compact design allows for easy PCB mounting, making it a practical choice for electronic projects.

Designed for precision, the ZMPT101K Mini Voltage Transformer features a linear range of 0 to 1000 volts and a load resistance of up to 400 ohms. The phase angle error is minimal, ensuring accurate readings. The operating temperature range of -40ºC to +85ºC makes it suitable for diverse environments. This transformer is ideal for engineers and hobbyists alike who require reliable voltage sensing solutions.

Explore the advantages of the ZMPT101K Mini Voltage Transformer for your electronic projects. It is perfect for applications requiring precise voltage measurement. Consider adding this transformer to your toolbox for improved performance in your electronic designs.

Discover the reliability of the ZMPT101K Mini Voltage Transformer at DNA. This UL certified transformer fits perfectly in the Current and Voltage Sensor category. Check other Current and Voltage Sensor that we have in stock.

At DNA, we cater to Indian electronics buyers. If you can't find certain parts, reach out to us. We can import items not in stock and support retail and bulk orders. Explore related items like Digital IC, Resistor, IGBT, LCD, MOSFET, and DC to DC Converter IC. Contact Us

Features of ZMPT101K Mini Voltage Transformer

UL certified
High accuracy
Compact size
PCB mounting
Operating temperature -40ºC to +85ºC

Specification of ZMPT101K Mini Voltage Transformer

Rated input current: 2mA
Maximum primary current: 8mA
Turns ratio: 1000:1000
Phase angle error: ≤20'
Linear range: 0~1000 Volts

Applications of ZMPT101K Mini Voltage Transformer

Voltage measurement in UPS
Power monitoring
Electrical testing
Educational projects
PCB design

Package Includes

1 X ZMPT101K Mini Voltage Transformer

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
