Product Images are shown for illustrative purposes only and may differ from actual product.

mics-6814 Air quality Sensor

  • Stock: 2
  • SKU: 1706 | DAA917
  • Rs. 4,439.75 (inc GST)
    Rs.3,762.50 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

mics-6814 Air quality Sensor

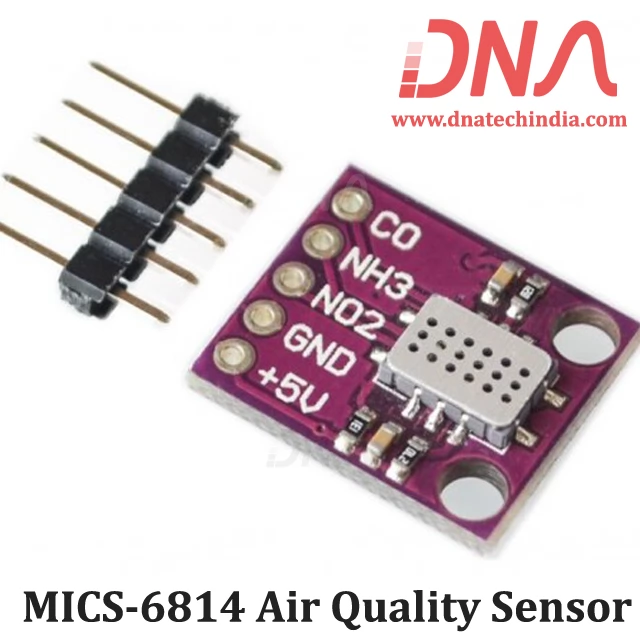

Mics-6814 Air quality Sensor Module

This module is a basically a breakout board for SGX Sensortech MICS 6814 Air Quality MOS Triple sensor. MiCS-6814 is a compact MOS sensor with three fully independent sensing elements on one package. It is a robust MEMS sensor for the detection of pollution from automobile exhausts and for agricultural/industrial odors.

MICS 6814 has a silicon gas sensor structure which consists of an accurately micro machined diaphragm with an embedded heating resistor and the sensing layer on top. The MiCS-6814 includes three sensor chips with independent heaters and sensitive layers. One sensor chip detects oxidising gases (OX) , the other sensor detects reducing gases (RED) and the other detects Ammonia (NH3).

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Detectable gases using MICS-6814

  • Carbon monoxide CO 1 – 1000 ppm
  • Nitrogen dioxide NO2 0.05 – 10 ppm
  • Ethanol C2H5OH 10 – 500 ppm
  • Hydrogen H2 1 – 1000 ppm
  • Ammonia NH3 1 – 500 ppm
  • Methane CH4 >1000 ppm
  • Propane C3H8 >1000 ppm
  • Iso-butane C4H10 >1000 ppm

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
