HDC1080 Digital Humidity Sensor


Write a review | 1 reviews

  • Stock: 10

    Availability: InStock priceValidUntil: 2026-08-04

  • SKU: 1137 | DAB636

Availability: InStock priceValidUntil: 2026-08-04

  • Rs. 424.80 (inc GST)
    Rs.360.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

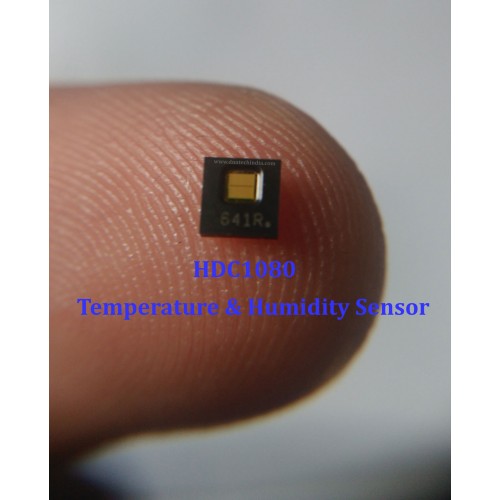

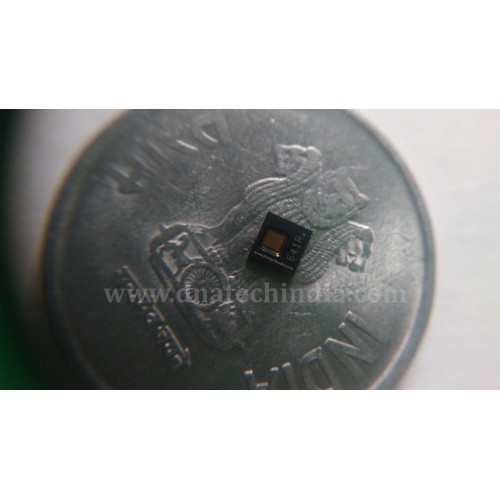

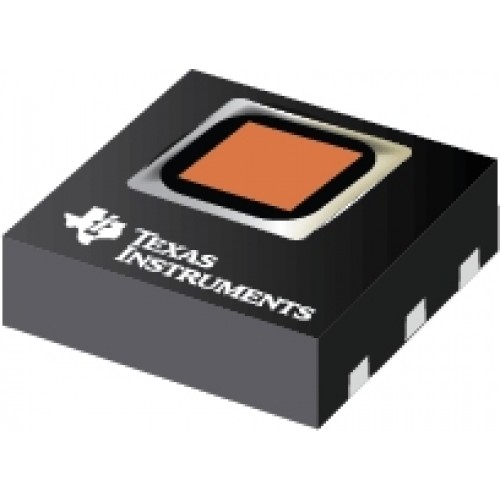

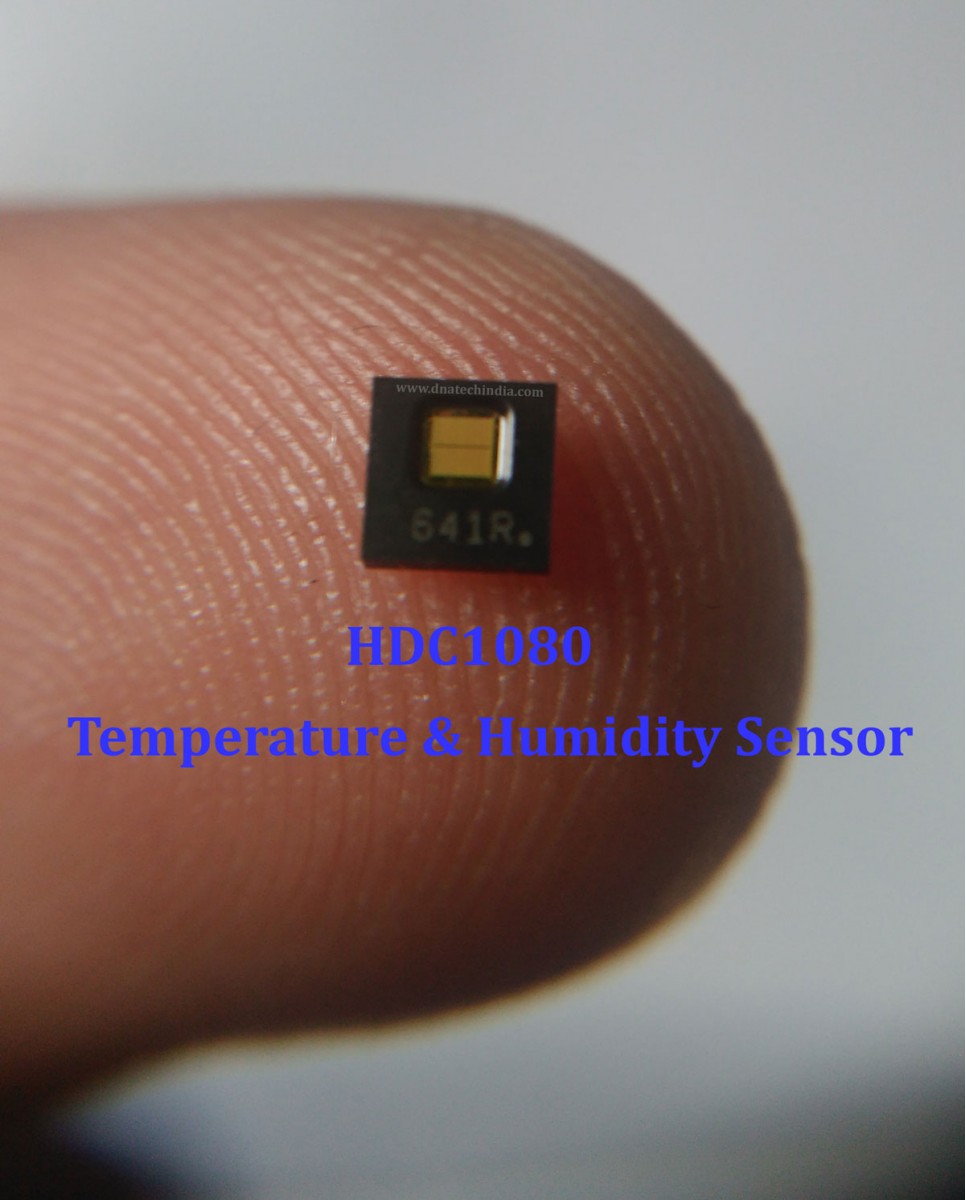

HDC1080 Digital Humidity Sensor

HDC1080 is an Environment sensor which has a High Accuracy Digital Humidity Sensor with integrated temperature sensor.

This sensor provides excellent measurement accuracy at very low power. The HDC1080DMBR operates over a wide supply range, and is a low cost, low power alternative to competitive solutions in a wide range of common applications. The humidity and temperature sensors are factory calibrated. Typical applications include HVAC, smart thermostats & room monitors, printers, handheld meters, medical devices, and wireless sensors.

Features of HDC1080 Humidity Sensor

  • Relative Humidity Accuracy ±2% (typical)
  • Typical Drift : <0.5%/year
  • Supply Current (Measuring): 180µA
  • Temperature Accuracy ±0.2°C (typical)
  • Excellent Stability at High Humidity
  • 14 Bit Measurement Resolution
  • 100nA Sleep Mode Current
  • Average Supply Current
  • 710nA @ 1sps, 11 bit RH Measurement
  • 1.3µA @ 1sps, 11 bit RH and Temperature Measurement
  • Supply Voltage 2.7V to 5.5V
  • Temperature Range (Operating) : -20ºC to +85ºC
  • Small 3mm×3mm Device Footprint
  • I2C Interface

Applications

  • HVAC
  • Smart Thermostats and Room Monitors
  • White Goods (Dryer, Refrigerator, Microwave, Dishwasher)
  • Printers
  • Handheld Meters
  • Camera Defog
  • Medical Devices
  • Wireless Sensors

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
